Industrial and Embedded ITX Motherboards for OEM and System Integrators



Compact x86 mainboards built on Mini-ITX (170 x 170 mm), Thin Mini-ITX (low-profile 20 mm height), and Nano-ITX (120 x 120 mm) standard footprints. Engineered for industrial PCs, interactive digital signage displays, edge computing gateways, and medical terminals.
Supporting Intel Core 12th, 13th, and 14th Generation processors (LGA1700 socket) as well as soldered low-power Intel N-Series and Elkhart Lake platforms. Features include 5 to 7 year long-life component availability, multi-display outputs (HDMI, DisplayPort, LVDS, eDP), dual to quad Gigabit Ethernet controllers, and wide DC voltage input options.

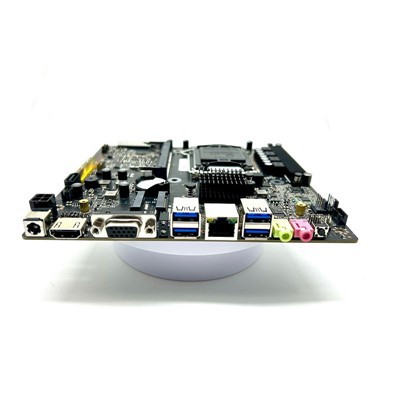

  • 11th Gen ITX Motherboard
    * Support Intel Core series ( 11th generation desktop CPU)
    * Support M.2 2230 WIFI interface (optional onboard WIFI)
    * 1 standard 7Pin SATA female socket and M.2 2280 solid state...
    view more
  • Mini ITX Motherboard Intel 10th Gen
    * Support Intel Core series ( 10th generation desktop CPU)
    * Support M.2 2230 WIFI interface (optional onboard WIFI)
    * 1 standard 7Pin SATA female socket and M.2 2280 solid state...
    view more
  • Nano ITX Motherboard 14th Gen
    * Support Intel Core series 14th gen desktop i3 i5 i7 CPU
    * Support M.2 2230 WIFI interface(Optional onboard WIFI)
    * Motherboard has one-key restore function, network wake-up,...
    view more

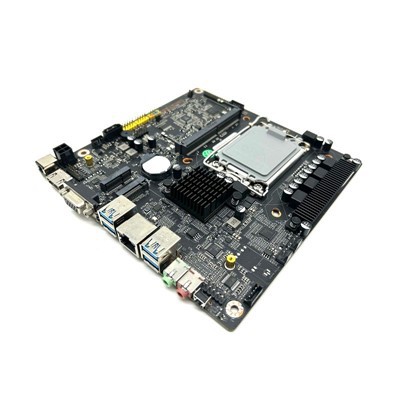

  • Nano ITX Motherboard 13th Gen
    * Support Intel Core series 13th gen desktop i3 i5 i7 CPU
    * Support M.2 2230 WIFI interface(Optional onboard WIFI)
    * Motherboard has one-key restore function, network wake-up,...
    view more

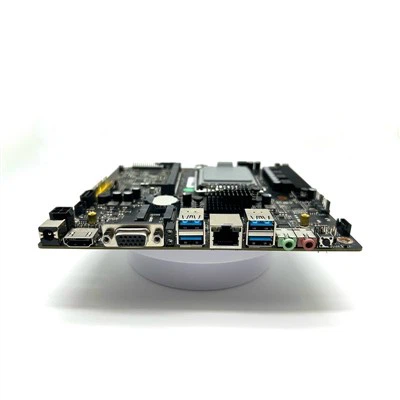

  • Nano ITX Motherboard 12th Gen
    * Support Intel Core series 12th gen desktop i3 i5 i7 CPU
    * Support M.2 2230 WIFI interface(Optional onboard WIFI)
    * Motherboard has one-key restore function, network wake-up,...
    view more

Product Types and Categories


Standard Mini-ITX Motherboards (170 x 170 mm): Feature full-height rear I/O shields, PCIe x16 expansion slots, and ATX 24+4 pin or DC-in power inputs. Optimized for commercial desktop workstations, digital signage players, and self-service kiosks.



Thin Mini-ITX Motherboards (Low Profile): Designed with a maximum rear I/O shield height of 20 mm, horizontal SODIMM slots, and direct DC 12V/19V power input. Built for shallow enclosures, ultra-thin All-in-One PCs, and flat panel displays.



Multi-LAN Network and Edge ITX Motherboards: Integrated with 2 to 4 Intel 2.5GbE/1GbE RJ45 controllers, onboard TPM 2.0 security modules, and bypass function options. Suitable for industrial firewalls, SD-WAN appliances, and edge AI gateways.



Industrial Fanless ITX Motherboards: Soldered BGA low-TDP processors paired with dense aluminum thermal spreader plates. Operating silently in fanless industrial control boxes and dust-sealed enclosures.





Technical Specifications and Configuration





Specification Parameter

Standard Mini-ITX (LGA1700)

Thin Mini-ITX (Low Profile)

Multi-LAN Industrial ITX

Form Factor Dimensions

170 x 170 mm

170 x 170 mm (20 mm I/O height)

170 x 170 mm

Processor Support

Intel Core i3/i5/i7 (12th/13th/14th Gen)

Intel Core i3/i5/i7 or Intel N100/N305

Intel Core i3/i5 or Intel N-Series / Atom

System Memory (RAM)

Dual SODIMM DDR4/DDR5, up to 64GB

Dual SODIMM DDR4/DDR5, up to 64GB

Dual SODIMM DDR4, up to 64GB

Power Input Range

Standard ATX 24+4 pin or DC 12V/19V

Direct DC 12V / 19V Jack

Wide-voltage DC 9V to 36V terminal or DC Jack

Display Interfaces

2x HDMI 2.0, 1x DP 1.4, 1x LVDS / eDP header

1x HDMI 2.0, 1x DP 1.4, 1x eDP / LVDS

2x HDMI 2.0 or 1x DP + 1x HDMI

Network Controllers

2x Intel i225-V / i226-V 2.5GbE RJ45

1x or 2x Realtek / Intel Gigabit LAN

4x Intel i225-V 2.5GbE RJ45 (or 4x Gigabit LAN)

Serial and Industrial IO

2x to 6x COM (RS232/RS422/RS485 selectable)

2x COM (RS232 headers)

4x to 6x COM headers, 8-bit GPIO header

Storage Expansion

1x M.2 2280 NVMe (PCIe 4.0 x4); 2x SATA III

1x M.2 2280 NVMe; 1x 7-pin SATA III

1x M.2 2280 NVMe; 1x mSATA / SATA III

Expansion Slots

1x PCIe x16 slot; 1x M.2 Key-E (Wi-Fi/BT)

1x M.2 Key-E; 1x M.2 Key-B (4G/5G + SIM)

1x M.2 Key-E; 1x M.2 Key-B (4G/5G module)

Operating Temperature

0 to 60 degrees Celsius

0 to 60 degrees Celsius

-20 to 70 degrees Celsius (Industrial Grade)



Applications



Industrial Automation and Control Systems:

Embedded mainboards housed in DIN-rail or rackmount chassis, interfacing with sensors and PLCs via RS485 and GPIO headers.

Interactive Kiosks and Vending Terminals:

Thin Mini-ITX mainboards powering multi-touch payment terminals and ticketing machines with direct LVDS screen drive.

11th Gen ITX Motherboard

Digital Signage and Multi-Display Players:

High-bandwidth boards capable of driving three independent 4K displays concurrently in retail and airport advertising systems.

Network Security and Firewalls:

Multi-LAN boards acting as industrial VPN routers, hardware firewalls, and network traffic monitoring appliances.



Customization and OEM/ODM Services



PCB Layout and Layer Modifications:

Custom trace routing, adding or removing COM/LAN/USB headers, adjusting internal pin header orientations, and modifying board dimensions.

01

BIOS and Firmware Engineering:

Factory pre-flashed custom startup boot logos, locked boot orders, auto power-on upon AC recovery settings, hardware Watchdog timer setup, and customized PXE profiles.

02

Power Delivery Redesign:

Integration of wide-voltage DC power modules (9V-36V) directly onto the PCB, featuring over-voltage (OVP) and reverse-polarity protection circuits.

03

Component Grade Options:

Selection of wide-temperature components (-40 to 85 degrees Celsius) and conformal coating application for moisture, dust, and chemical resistance.

04



Manufacturing and Quality Control

Automated SMT Production:

High-speed Yamaha SMT lines handle multi-layer PCB assembly, fine-pitch BGA placement, and high-density passive component mounting.



100% AOI and X-Ray Inspection:

Every populated PCB undergoes 3D Automated Optical Inspection (AOI) followed by X-Ray inspection of BGA solder balls to ensure zero cold-solder bridges or voids.

ESD and Transient Voltage Protection:

TVS diodes installed across all external I/O ports (USB, HDMI, LAN, COM) to withstand static discharge up to +/-8kV contact and +/-15kV air discharge.

4-Hour Thermal Aging Test:

Fully assembled boards undergo a continuous 4-hour burn-in stress test in a 45 degrees Celsius elevated temperature chamber under full system processing load.

Regulatory Compliance:

CE, FCC, RoHS, and REACH compliant manufacturing processes.



productcate-1-1productcate-1-1



MOQ, Lead Time and Packaging



Minimum Order Quantity (MOQ):

20 units for standard stock catalog models; 100 units for custom BIOS or logo pre-flashing; 500 units for full OEM PCB redesigns.

Production Lead Time:

3 to 5 business days for standard sample units; 15 to 20 business days for volume OEM production runs.

Safe Export Packaging:

Boards are sealed in individual static-shielding ESD bags with moisture-absorbent desiccant packs, supported by custom EPE foam trays in 20-unit master cartons.





FAQ





Q: What is the guaranteed supply availability lifecycle for your industrial ITX motherboards?

A: Our industrial ITX motherboards utilize Intel Embedded Roadmap chipsets, guaranteeing a long-term supply stability of 5 to 7 years. This prevents costly redesigns and re-certifications for integrated systems.

Q: Can these motherboards auto power-on after an unexpected AC power outage?

A: Yes. All motherboards support hardware-level Auto Power On (AC Power Loss Restore) configured via BIOS options or onboard hardware pin headers, essential for unattended field deployments.

Q: Do you supply Thin Mini-ITX models that accept direct DC power input without an internal power supply unit?

A: Yes. Our Thin Mini-ITX series features onboard DC power regulation accepting direct DC 12V or 19V input via rear panel DC jack or internal 4-pin ATX connector, eliminating the need for internal ATX power supplies.

Q: Can LVDS and eDP display outputs drive panel screens directly without external conversion cards?

A: Yes. Onboard 24-bit dual-channel LVDS and eDP pin headers include jumper-selectable panel voltage settings (3.3V, 5V, 12V) and backlight control signals, allowing direct driving of industrial display panels.

Q: How do you ensure BIOS settings remain intact if the CMOS RTC battery drains in remote installations?

A: We offer non-volatile EEPROM storage options for critical custom BIOS default profiles. If the RTC battery drains, the motherboard automatically restores user-defined custom default configurations rather than factory raw values.

Q: What warranty support and spare part policies do you offer for OEM buyers?

A: We provide a standard 2-year factory hardware warranty. For volume contract orders, we include a 1% to 2% spare motherboard buffer alongside technical support for schematic and pin-out integration.
