Rugged Industrial PCs and Fanless Box Computers for Automation and System Integration



Ruggedized x86 computing systems engineered for continuous 24/7 operation in harsh industrial environments. Built with extruded aluminum fanless thermal chassis, these Industrial PCs protect internal mainboards against dust, metal particles, moisture, and continuous mechanical vibration.
Powered by Intel Core and low-power Atom/Celeron processors, our systems integrate wide-voltage DC power inputs, isolated serial communication ports, and multi-Gigabit LAN controllers, satisfying demanding requirements in factory automation, machine vision, and outdoor edge computing.




  • 15 Inch Small Industrial PC
    Sheet metal embedded industrial control all-in-one machine
    GY-1501
    1. Intel® I3/I5/I7 Celeron J1900/N5095/5105.
    2. Support SO-DIMM 、Support M-SATA 、M.2 Sata.
    3. ...
    view more
  • 15.6 Inch Industrial Embedded Computer
    Sheet metal embedded industrial control all-in-one machine
    GY-1561
    1. Intel® Core i3/i5/i7, Celeron J1900/N5095/N5105.
    2. Supports SO-DIMM memory, M-SATA, and M.2 SATA (Please...
    view more
  • 17 Inch Industrial Panel PC Windows 10
    Sheet metal embedded industrial control all-in-one machine
    GY-1701
    1. Intel® I3/I5/I7 Celeron J1900/N5095/5105
    2. Support SO-DIMM 、Support M-SATA 、 M.2 Sata
    3. ...
    view more

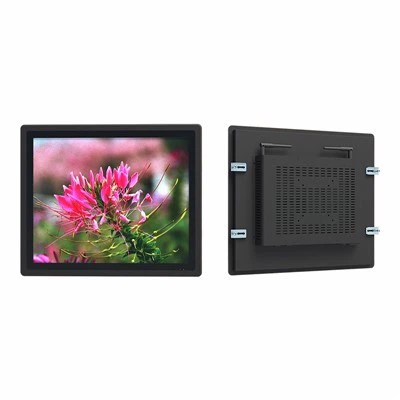

  • 19 Inch Industrial Touchscreen PC
    Sheet metal embedded industrial control all-in-one machine
    GY-1901
    1. Intel® I3/I5/I7 Celeron J1900/N5095/5105
    2. Support SO-DIMM 、Support M-SATA 、 M.2 Sata
    3. ...
    view more
  • 21.5 Inch Industrial Touch Screen Computer
    Sheet metal embedded industrial control all-in-one machine
    GY-2151
    1. Intel® Core i3/i5/i7, Celeron J1900/N5095/N5105.
    2. Supports SO-DIMM, M-SATA, and M.2 SATA.
    3....
    view more
  • AIbox Industrial PC
    • Dual R45 Gigabit network ports on the motherboard, 100M/1000M auto-adaptive.
    • Supports dual display interfaces of VGA and HDMI
    • 6 DB9 Com ports, Among which COM1 and COM2...
    view more
  • EIPC Fanless Box PC
    • Dual R45 Gigabit network ports on the motherboard, 100M/1000M auto-adaptive.
    • Supports dual display interfaces of VGA and HDMI
    • 6 DB9 Com ports, Among which COM1 and COM2...
    view more

15.6 Inch Industrial Embedded Computer



Product Types and Categories

Fanless Embedded Box PCs: Passive thermal cooling systems utilizing heavy-gauge aluminum finned chassis. Engineered for dust-sealed control cabinets, robotic cells, and high-vibration machinery.

Multi-COM and Multi-LAN Industrial Controllers: Specialized configurations featuring 4 to 8 independent COM ports (RS232, RS422, RS485) and dual to quad Intel 2.5GbE RJ45 ports. Built for industrial IoT gateways, protocol converters, and edge firewalls.

Heavy-Duty Active-Cooled IPCs: High-performance computing nodes equipped with dedicated graphics card support and industrial-grade blower fans for heavy machine vision and deep-learning edge inference.





Technical Specifications and Configuration





Specification Parameter

Standard Fanless Box PC

High-Performance Industrial PC

Multi-Port Gateway IPC

Processor Platform

Intel Celeron J6412 or Core i3/i5 (11th/12th Gen)

Intel Core i5/i7 (12th/13th/14th Gen)

Intel Atom x6000 series or Core i3/i5 (U-series)

Cooling Architecture

Fanless passive cooling via extruded aluminum chassis

Heavy-duty copper heat-pipes with industrial PWM fan

Fanless passive cooling with thermal pad conduction

System Memory (RAM)

Dual SODIMM DDR4/DDR5, up to 64GB

Dual SODIMM DDR4/DDR5, up to 64GB

Single or Dual SODIMM DDR4, up to 32GB

Storage Expansion

1x M.2 2280 NVMe (PCIe 3.0 x4); 1x 2.5 inch SATA III

1x M.2 2280 NVMe (PCIe 4.0 x4); 2x 2.5 inch SATA bay

1x M.2 2280 NVMe; 1x mSATA or 7-pin SATA III

Power Input and Protection

DC 9V to 36V terminal block with OVP and OCP

DC 12V to 24V terminal block with surge protection

Wide DC 9V to 36V terminal block with ignition control

Networking Interfaces

2x Intel i211-AT / i226-V Gigabit/2.5GbE RJ45

2x or 4x Intel 2.5GbE RJ45; M.2 Key-E for Wi-Fi 6

4x Intel Gigabit RJ45; Optional 4G/5G via M.2 Key-B

Serial and Discrete IO

2x COM (RS232/485); 4x USB 3.2, 2x USB 2.0

2x COM; 4x USB 3.2, 2x Type-C, 1x Audio combo

4x to 8x COM (isolated RS232/422/485); 8-bit GPIO

Display Outputs

2x HDMI 2.0 (4K at 60Hz) or 1x HDMI + 1x DP 1.4

2x HDMI 2.0, 1x DisplayPort 1.4 (Triple independent display)

2x HDMI 2.0 (4K resolution support)

Operating Temperature

-20 to 60 degrees Celsius (Extended range option)

0 to 50 degrees Celsius

-20 to 70 degrees Celsius (Industrial Grade)



Applications

Factory Automation and CNC Control:

DIN-rail or wall-mounted box PCs serving as primary machine controllers and human-machine interface (HMI) data processors.

Machine Vision and Quality Inspection:

High-processing-density IPCs connected to multiple industrial cameras via PoE and USB 3.2 interfaces for real-time defect detection.

Industrial IoT Gateways:

Edge computing nodes aggregating sensor telemetry from PLCs and transmitting encrypted operational data to cloud servers.

Intelligent Transportation Systems (ITS):

Wide-voltage powered IPCs installed in toll collection booths, railway monitoring stations, and traffic enforcement vehicles.



Customization and OEM/ODM Services



Enclosure and Mounting Customization:

Customized aluminum extrusion dimensions, specialized wall-mount brackets, DIN-rail clips, and laser-etched corporate logo plates.

IO Expansion Layouts:

Custom rear panel cutouts supporting specialized data acquisition cards, CAN bus interfaces, or additional isolated COM ports.

15.6 Inch Industrial Embedded Computer suppliers

BIOS and Watchdog Integration:

Factory pre-configured watchdog timer settings, automatic power-on after power failure, locked boot configurations, and custom startup splash screens.

Conformal Coating:

Optional application of acrylic or polyurethane conformal coating on PCBs to protect against high humidity, salt spray, and corrosive gas environments.





Manufacturing And Quality Control







Surface Mount Technology: Automated Yamaha SMT lines place multi-layer PCB components, followed by 3D Automated Optical Inspection (AOI) on all solder joints.




X-Ray Solder Verification: BGA and micro-component solder connections undergo X-Ray inspection to eliminate internal bridging and voids.




Transient Voltage Suppression: TVS diodes and optical isolation circuits installed on all serial ports and power inputs to withstand electrostatic discharge and electrical surges.




Elevated Temperature Burn-In: 100% of assembled Industrial PCs undergo a continuous 12-hour thermal stress test in a 50 degrees Celsius chamber under 100% CPU/GPU workload.




Vibration and Shock Testing: Prototype chassis designs undergo 3-axis sinusoidal vibration testing to verify structural durability under heavy industrial vibration profiles.





productcate-1-1productcate-1-1



MOQ, Lead Time and Packaging


Minimum Order Quantity (MOQ):

10 units for standard catalog configurations; 50 units for custom BIOS or front panel silk-screening; 200 units for custom mechanical enclosures.

Production Lead Time:

3 to 5 business days for standard sample orders; 15 to 20 business days for volume OEM production runs.

Safe Export Packaging:

Units secured in custom high-density EPE anti-static foam inserts, packed inside 5-ply double-wall corrugated master cartons designed for international freight drops.





FAQ





Q: Can these Industrial PCs operate reliably in unconditioned factories with high ambient temperatures?

A: Yes. Our fanless models use direct thermal conduction from the CPU to the external aluminum finned chassis. They maintain stable processing output at ambient temperatures up to 60 degrees Celsius without unexpected thermal shutdowns.

Q: What power protection features are included on the DC power inputs?

A: All industrial box PCs feature built-in over-voltage protection (OVP), over-current protection (OCP), and reverse-polarity protection. Wide-voltage models accept DC 9V to 36V inputs to safeguard against voltage spikes common in heavy machinery power lines.

Q: Do your industrial motherboards guarantee long-term component availability?

A: Yes. We utilize Intel Embedded Roadmap processors and chipsets, securing a minimum 5-year production and supply lifecycle to prevent premature end-of-life issues for system integrators.

Q: Are the serial COM ports optically isolated against electrical noise?

A: Standard models include robust ESD protection on all serial lines. For high-interference environments, we offer optional optical isolation circuitry on RS485/RS422 ports to protect internal electronics from ground loops and voltage spikes.

Q: What operating systems are supported out of the box?

A: Our hardware fully supports Windows 10/11, Windows 10 IoT Enterprise LTSC, Ubuntu Linux, Debian, and CentOS. Driver packages for specific Linux kernels are provided upon request.

Q: What warranty and replacement policies do you provide for OEM customers?

A: We provide a 2-year factory hardware warranty. For volume orders, we supply a pre-agreed buffer ratio (1% to 2%) of critical replacement modules and power adapters to ensure rapid local maintenance support.
