Shenzhen HJS Technology Group is one of the most reliable manufacturers and suppliers of ops pc ultra 7 in China. We provide high quality products made in China with competitive price. Welcome to buy discount ops pc ultra 7 in stock here from our factory.

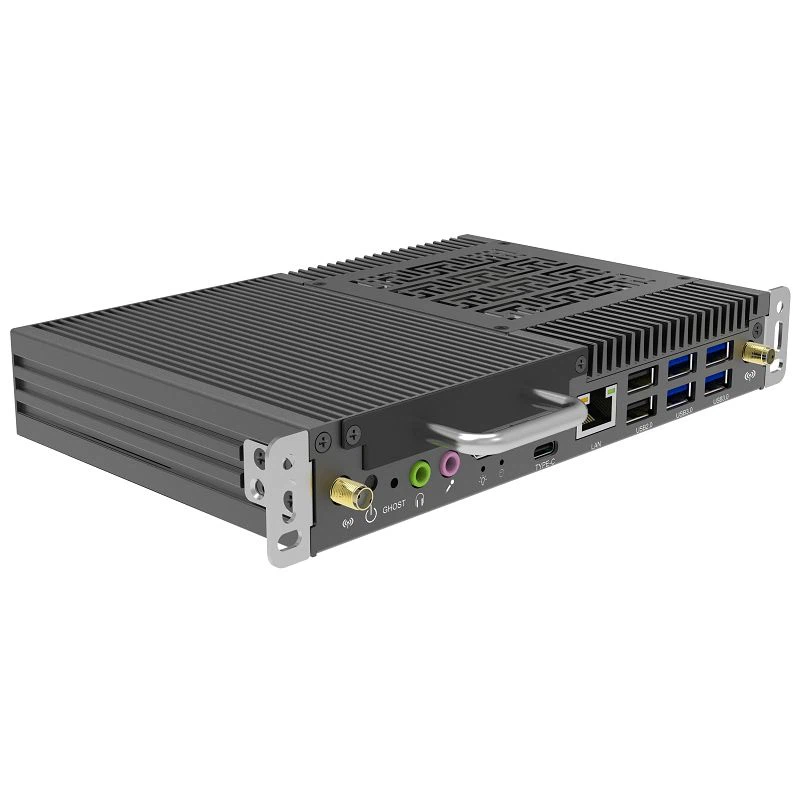

This OPS module is powered by the Intel Core Ultra 7 165U (Meteor Lake) processor, providing reliable performance and low-power efficiency for long-time operation in commercial environments.Compliant with Intel Open Pluggable Specification, it offers easy integration, fast deployment and cost-effective maintenance for various display solutions.

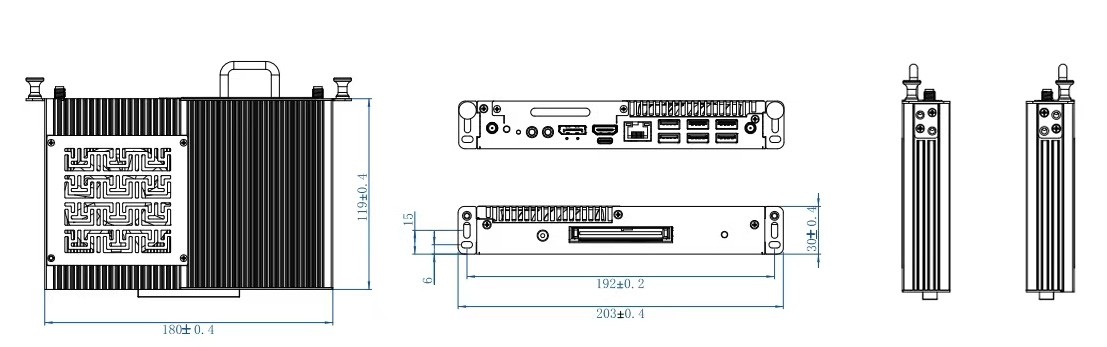

product-1107-347

Specification

Processor	Core Ultra5 125U Clock Frequency 2.1GHz Turbo frequency 4.3GHz 15W-57W 12 cores 14 threads 12MB Cache Core Ultra5 135U Clock Frequency 2.1GHz Turbo frequency 4.4GHz 15W-57W 12 cores 14 threads 12MB Cache Core Ultra7 165U Clock Frequency 2.1GHz Turbo frequency 4.9GHz 15W-57W 12 cores 14 threads 12MB Cache Core Ultra5 125H Clock Frequency 2.5GHz Turbo frequency 4.5GHz 28W-115W 14 cores 18 threads 18MB Cache Core Ultra5 135H Clock Frequency 2.5GHz Turbo frequency 4.6GHz 28W-115W 14 cores 18 threads 18MB Cache Core Ultra7 155H Clock Frequency 2.5GHz Turbo frequency 4.8GHz 28W-115W 16 cores 22 threads 24MB Cache Core Ultra 9 185U Clock Frequency 2.5GHz Turbo frequency 5.1GHz 45W-115W 16 cores 22 threads 24MB Cache
Memory	Technology RAM	2x SODIMM DDR4. Up to 32GB per single module.
Display	Front output	DP 7680 x 4320 8K60Hz HDMI2.0 3840 x 2160 4K60Hz
Display	JAE	HDMI2.0 3840 x 2160 4K60Hz
Graphics	Model	Intel Arc Graphics
Hard disk	SSD	1x M.2 2280 slot supports NVME/SATA protocol (auto-switching) 1x JSATA interface supports 2.5-inch hard disk.
Network	BT	YES
	WLAN	Supports WiFi 5/WiFi 6 (optional dual-band 2.4GHz + 5GHz).
	Interface	M.2 2230 PCIe protocol
I/O connector	JAE Connector	JAE TX25 80-PIN
	Indicator	1 x Power indicator + 1x HDD indicator
	LAN	1x10/100/1000Mbps adaptive (RJ45)
	USB	Front Panel : 4xUSB3.0 , 2xUSB2.0 OPS end: 2xUSB2.0 , 1xUSB3.0
	Type-C	1 x USB3.0
	Super IO	Realize serial port function (TTL mode) Intelligent control of fan speed
	Antennas	2 x Antennas
Extension ports	Audio	LINE OUT1 MIC IN1
	Mini-PCIe (built-in)	1 x M.2 2230(WIFI) 1 x M.2 2280(SSD) 1 x JSATA (2.5-inch hard disk)
Power requirements	DC-IN	19V/7A and above
Physical	Size	11918030mm
Physical	Shell material	Aluminum and iron
Cooling	Cooling	5V single fan all-aluminum heat sink
Environment	Working temperature humidity	Working temperature: -20℃~60℃ Working humidity: 10%~90%, non-condensing
Software	Operating system	Windows®10 / Windows®11 / Linux
Package		10 pcs / carton
Warranty		3 years
