Shenzhen HJS Technology Group is one of the most reliable manufacturers and suppliers of ops for interactive display in China. We provide high quality products made in China with competitive price. Welcome to buy discount ops for interactive display in stock here from our factory.

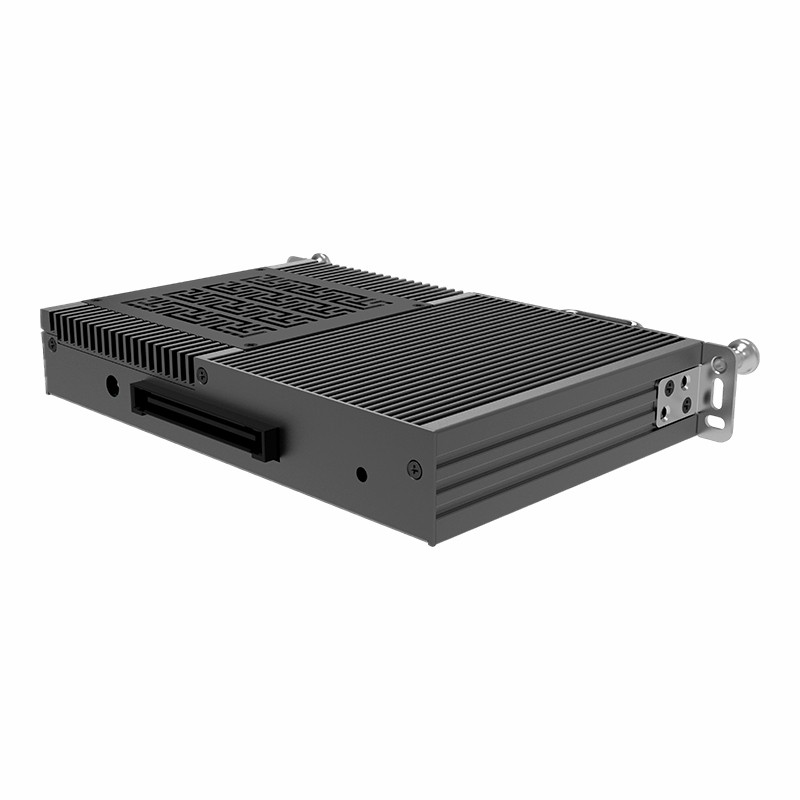

This OPS PC is designed based on the Intel 11th Gen Tiger Lake platform, providing Intel Tiger Lake H level high performance for education and conference solutions.It fully complies with the Intel Open Pluggable Specification (OPS), supporting easy installation, upgrade and maintenance.
Specification
|
Processor |
I5 1145G7 8M Cache 2.6GHz turbo frequency 4.4GHz 4 cores 8 threads 28W |
|
|
Memory |
Technology |
2x SODIMM DDR4 |
|
DDR4-8G |
||
|
Display |
Front output |
DP 7680 x 4320 8K60Hz |
|
JAE |
HDMI2.0 3840 x 2160 4K60Hz |
|
|
Graphics |
Model |
Intel Iris Xe Graphics |
|
Hard disk |
SSD |
1x M.2 2280 slot supports PCIe/SATA protocol (auto-switching) |
|
256G |
||
|
Network |
BT |
YES |
|
WLAN |
Supports WiFi 5/WiFi 6 (optional dual-band 2.4GHz + 5GHz). |
|
|
Interface |
M.2 2230 PCIe protocol |
|
|
I/O connector |
JAE Connector |
JAE TX25 80-PIN |
|
Indicator |
1 x Power indicator + 1x HDD indicator |
|
|
LAN |
1x10/100/1000Mbps adaptive (RJ45) |
|
|
USB |
Front: 4xUSB3.0 , 2xUSB2.0 |
|
|
Type-C |
1 x USB3.0 |
|
|
Super IO |
Realize serial port function (TTL mode) |
|
|
Antennas |
2 x Antennas |
|
|
Extension ports |
Audio |
LINE OUT*1 MIC IN*1 |
|
Mini-PCIe (built-in) |
1 x M.2 2230(WIFI) |
|
|
Power requirements |
DC-IN |
19V/5A and above |
|

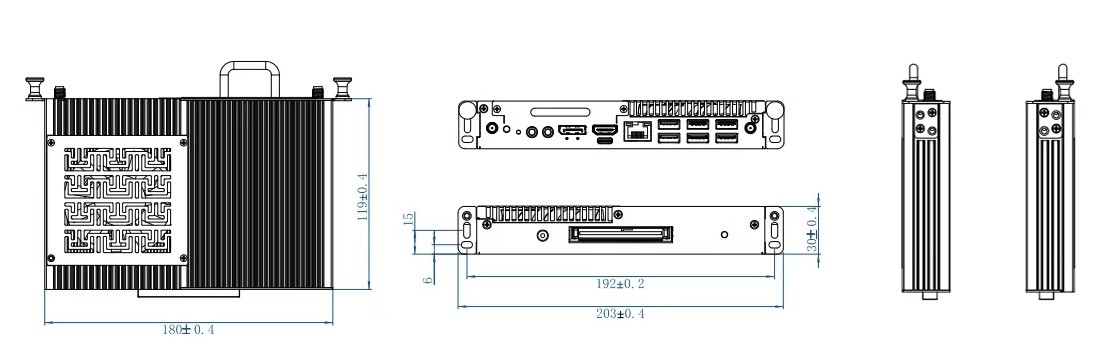

Physical |
Size |
119*180*30mm |
|
Shell material |
Aluminum shell |
|
|
Cooling |
Cooling |
5V fan heat dissipation |
|
Environment |
Working temperature humidity |
Working temperature: -20℃~60℃ |
|
Software |
Operating system |
Windows®10 Windows®11 |
|
Package |
10pcs / carton |
|
|
Warranty |
3 years |
|
