Shenzhen HJS Technology Group is one of the most reliable manufacturers and suppliers of intel open pluggable specification in China. We provide high quality products made in China with competitive price. Welcome to buy discount intel open pluggable specification in stock here from our factory.

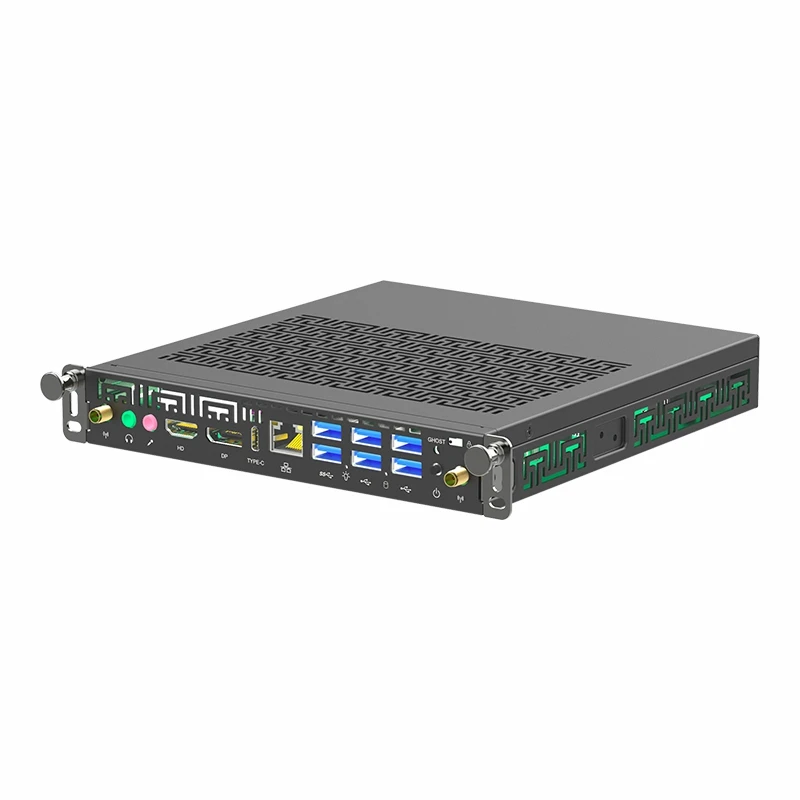

Powered by the Intel Meteor Lake platform (Core Ultra processors), this OPS module delivers superior computing power for modern classrooms and meeting rooms. Fully compliant with the Intel Open Pluggable Specification, it enables quick installation, effortless upgrades, and simplified maintenance. Built-in TPM 2.0 ensures robust hardware-level data security.

product-1003-823

Specification

Processor	Intel Core Ultra5 125U Clock Frequency 2.1GHz Turbo frequency 4.3GHz 15W-57W 12 cores 14 threads 12MB Cache Intel Core Ultra5 135U Clock Frequency 2.1GHz Turbo frequency 4.4GHz 15W-57W 12 cores 14 threads 12MB Cache Intel Core Ultra7 165U Clock Frequency 2.1GHz Turbo frequency 4.9GHz 15W-57W 12 cores 14 threads 12MB Cache Intel Core Ultra5 125H Clock Frequency 2.5GHz Turbo frequency 4.5GHz 28W-115W 14 cores 18 threads 18MB Cache Intel Core Ultra5 135H Clock Frequency 2.5GHz Turbo frequency 4.6GHz 28W-115W 14 cores 18 threads 18MB Cache Intel Core Ultra7 155H Clock Frequency 2.5GHz Turbo frequency 4.8GHz 28W-115W 16 cores 22 threads 24MB Cache Intel Core Ultra9 185U Clock Frequency 2.5GHz Turbo frequency 5.1GHz 45W-115W 16 cores 22 threads 24MB Cache
Memory	Technology RAM	2x SODIMM DDR5 Supports up to 32GB per single module.
Display	Front output	DP 7680 x 4320 8K60Hz HDMI2.0 3840 x 2160 4K60Hz
Display	JAE	HDMI2.0 3840 x 2160 4K60Hz
Graphics	Model	Intel Arc Graphics
Hard disk	SSD	1x M.2 2280 slot supports NVME/SATA protocol (auto-switching) 1x JSATA interface supports 2.5-inch hard disk.
Network	BT	YES
	WLAN	Supports WiFi 6 (optional dual-band 2.4GHz + 5GHz).
	Interface	M.2 2230 PCIe protocol
I/O connector	JAE Connector	JAE TX25 80-PIN
	Indicator	1 x Power indicator + 1x HDD indicator
	LAN	1x10/100/1000Mbps adaptive (RJ45)
	USB	Front: 4xUSB3.0 , 2xUSB2.0 OPS end: 2xUSB2.0 , 1xUSB3.0
	Type-C	1 x USB3.0
	Super IO	Realize serial port function (TTL mode) Intelligent control of fan speed
	Antennas	2 x Antennas
Extension ports	Audio	LINE OUT1 MIC IN1
	Mini-PCIe (built-in)	1 x M.2 2230(WIFI) 1 x M.2 2280(SSD) 1 x SATA
Power requirements	DC-IN	19V/7A and above
Physical	Size	180x195x30mm/ 180x195x42mm
Physical	Shell material	Iron
Cooling	Cooling	5V dual fan cooling
Environment	Working temperature humidity	Working temperature: -20℃~60℃ Working humidity: 10%~90%, non-condensing
Software	Operating system	Windows®10 / Windows®11 / Linux
Package		10pcs/ carton
Warranty		3 years
