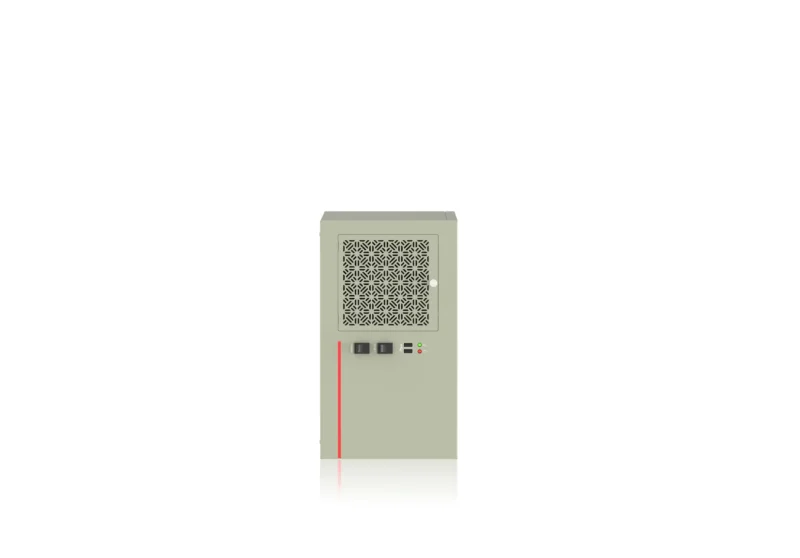

* Flexible installation capabilities, compatible with MATX and ITX motherboards
* Professional and reasonable cooling air duct design ensures smooth heat dissipation for the processor and hard drive combination.
* Dust-proof design, simple installation method, and easy disassembly and maintenance.
* Rich expansion functions, supporting seven-slot half-height, full-length plug-in expansion.
* Professional EMC design, with strong anti-electromagnetic interference and radiation protection capabilities.
* The red lines added to the window patterns represent the Chinese national style.
Share This Items :
| Chassis size | 330*350*190mm | |
| Hard Disk | 2-3.5 inch hard disk position or 1-2.5 inch hard disk position | |
| Applicable motherboard | Supports ATX,MATX,ITX motherboard | |
| Front interfaces | 2*USB2.0,1*Power Indicator light,1*HDD indicator light,1*power light, 1*Reset Switch | |
| Materials | Maanshan lron and Steel | |
| Fan | 1-12025 fan | |

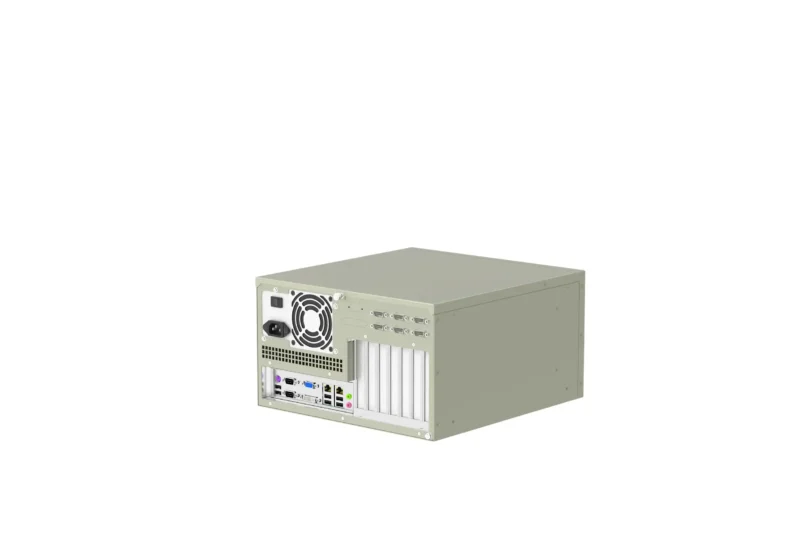

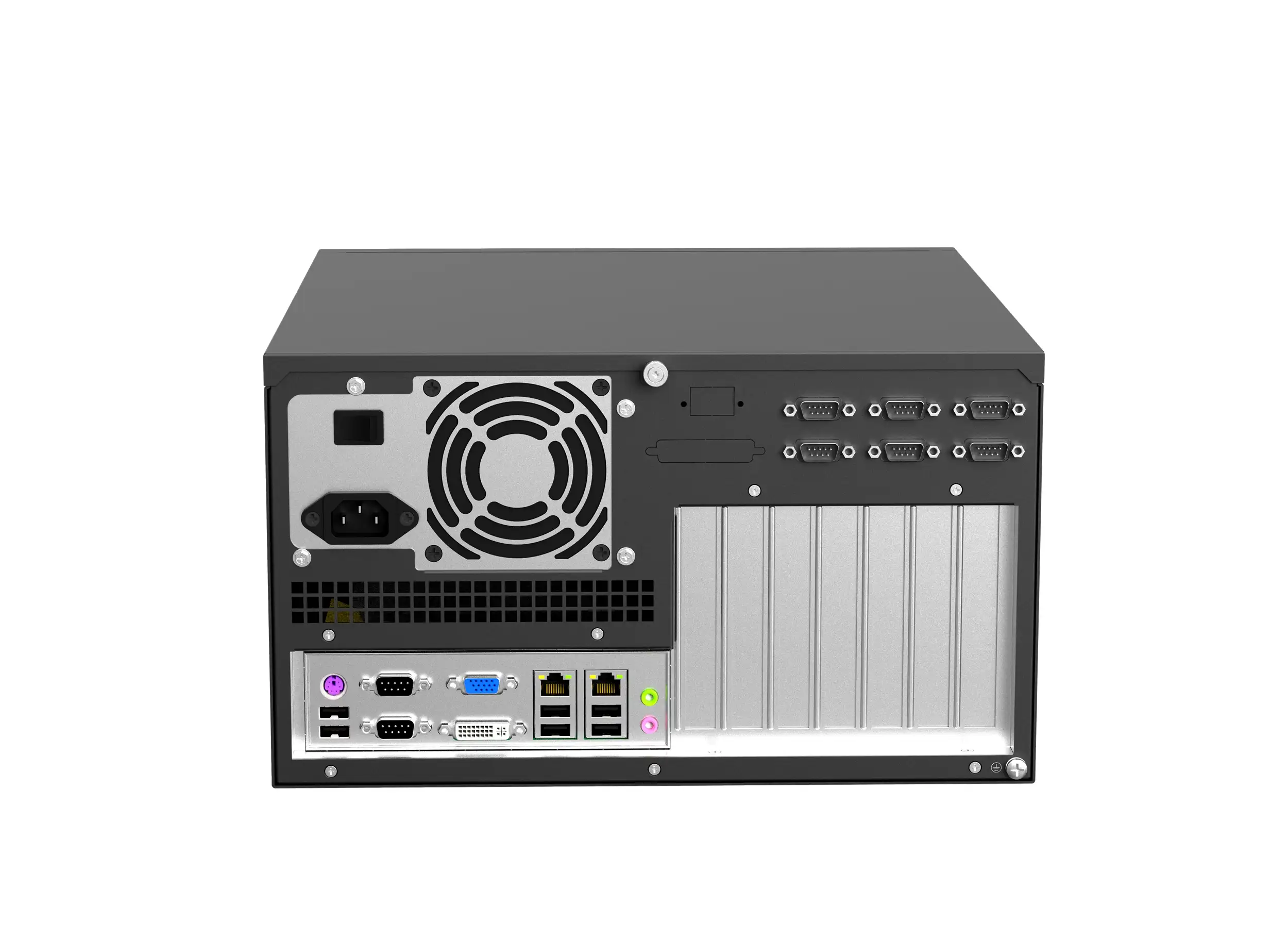

| I/0 Expansion | 7 expansion slots | |
| Power | Standard ATX power supply | |

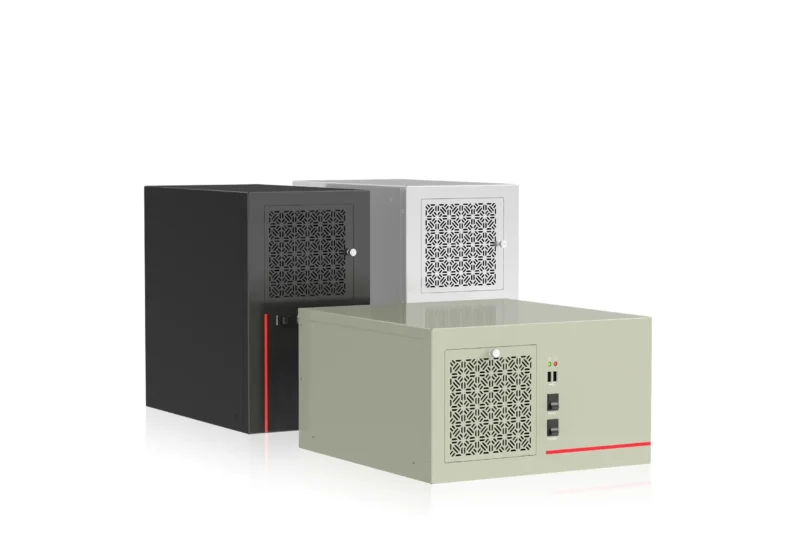

| Color | Black/ Grey/Sliver | |
| Package Size | 465X425X292mm | |
| Optional Motherboard: (Welcome to contact us for more specification of Motherboard ) | ||
| Model | Plate Type | Size |
| ATX-B75 | ATX | 305x244mm |
| ATX-B85 | ATX | 305x244mm |
| ATX-B150 | ATX | 305x244mm |
| ATX-Q370 | ATX | 305x244mm |
| MATX-B75 | MicroATX | 244x244mm |
| MATX-B85 | MicroATX | 244x244mm |
| MATX-B560 | MicroATX | 244x244mm |
* Motherboard supports Intel Core 10/11th Gen(desktop solution)
* 8*USB interfaces, including 6*USB3.0 (socket)/2*vertical USB2.0 socket interface; 2*2×5 9Pin USB2.0 pin
* One-click hardware restore system
* 6*COM port, standard RS232 mode; (COM3.COM4 can support RS485)
* Three display outputs VGA+HDMl+DP support independent graphics card
| Model | MATX-B560 |
| Product type | Standard MATX industry mid-board |
| Processor | Intel Core 10/11th Gen (desktop solution) CPU |
| Chipset | Intel*B560 |
| Memory | 4*DIMM DDR4 large capacity supports up to 3200MHz 128GB |
| Display interface | 1*HDMI Type-A socket 3840*2160@30Hz |
| 1*DP Type-A socket supports 3840*2160@30Hz | |
| 1*standard VGA female socket 1920*1080@60Hz | |
| Storage | 4*standard 7 Pin SATA connectors, 1 M.2 2280 SSD (Adaptive NVME/SATA) |
| Audio | ALC897 HD sound card |
| Audio output (green) Mic input (pink) | |
| Front panel pin 1 x 2*5Pin 2.54mm double row pins | |
| Network | Onboard 1210 and I219 Gigabit network cards, 2 standard RJ45 interfaces 10M/100M/1000M adaptive |
| USB | 6*USB3.0,2 * USB 2.0 Type-A 2 sets of USB2.0, 2*5Pin, 2.54mm double-row pin |
| PS2 | 1*1X 6 pin socket |
| GPIO | 1*2X10_2.54MM double row pin |
| LPT interface | 1*2X13_2.54MM pin socket |
| COM | Onboard intel 1* 1210 and 1* 1219 chip dry Gigabit network card |
| 2* standard RJ45 interfaces 10M100M1000M adaptive | |
| Power supply | ATX24PIN |
| Expansion bus | 1*PCle×16, 1*PCle×4, 2*PCI |
| Button | 1*PWRSW button |
| Fan | 2*3Pin SYS-FAN, 1* 4 PIN CPU-FAN |
| PCB size (L×W×H) | 244x244mm |
