* Flexible installation capabilities, compatible with MATX and ITX motherboards
* Professional and reasonable cooling air duct design ensures smooth heat dissipation for the processor and hard drive combination.
* Dust-proof design, simple installation method, and easy disassembly and maintenance.
* Rich expansion functions, supporting seven-slot half-height, full-length plug-in expansion.
* Professional EMC design, with strong anti-electromagnetic interference and radiation protection capabilities.

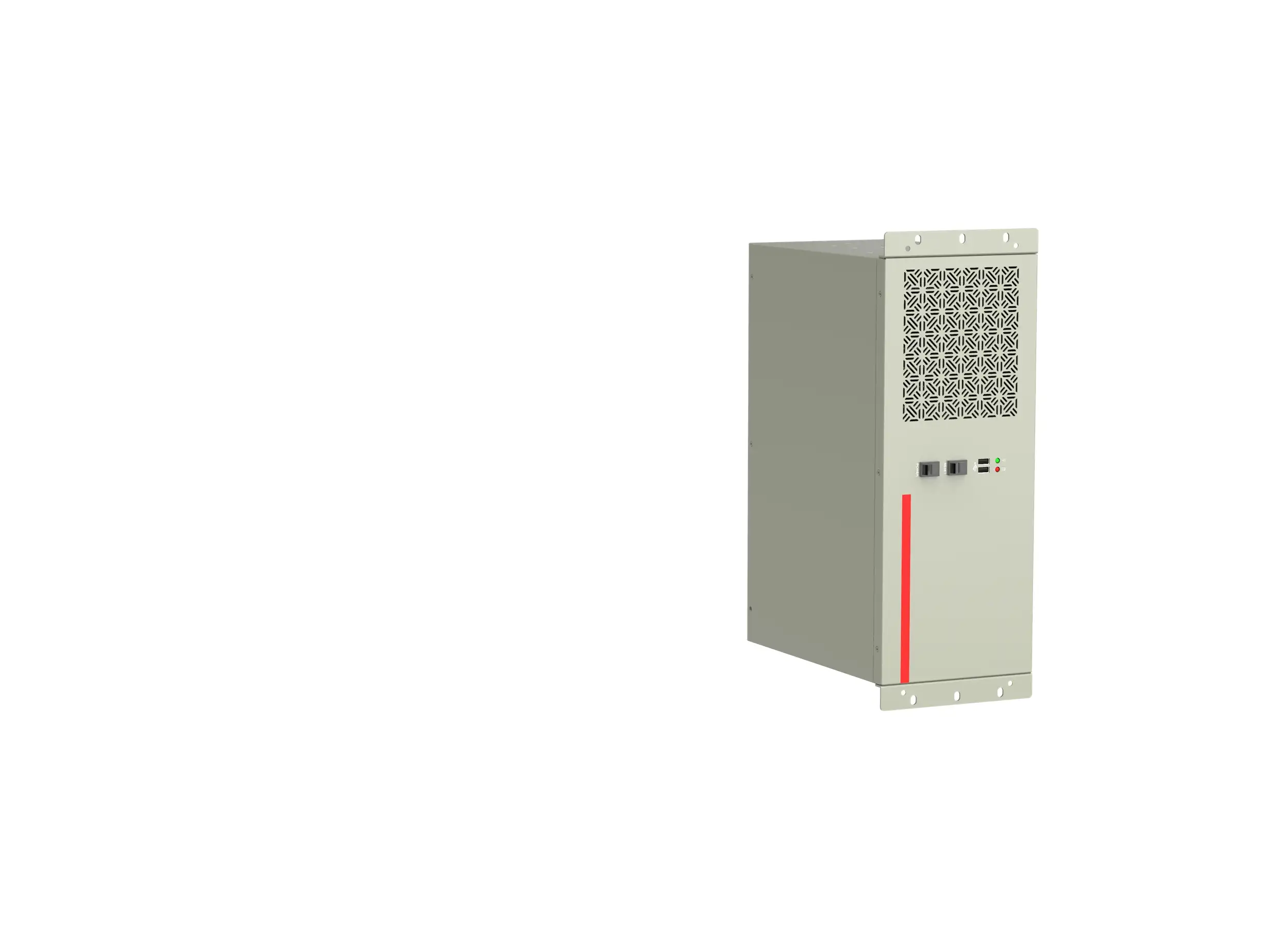

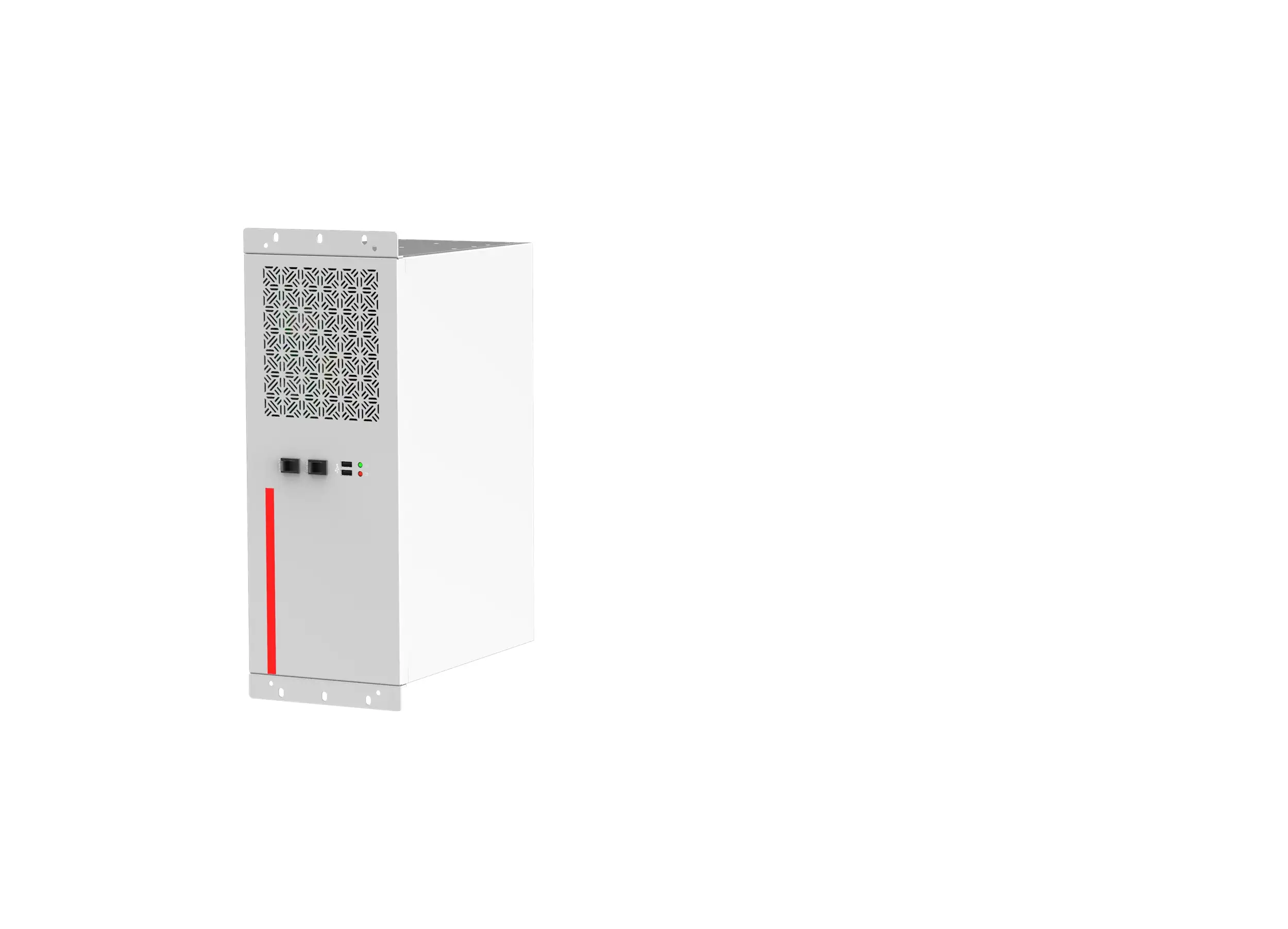

* The red lines added to the window patterns represent the Chinese national style.
Share This Items :
| Product size | 330*320*154mm | |
| Hard Disk | 1-3.5 inch hard disk,2-2.5 inch hard disk | |
| Applicable motherboard | Supports MATX,ITX motherboard | |
| Front interfaces | 2*USB2.0,1* Power Indicator light,1*HDD Indicator light,1*power light, 1*Reset Switch | |
| Materials | Maanshan lron and Steel | |
| Fan | 1-8025 fan | |

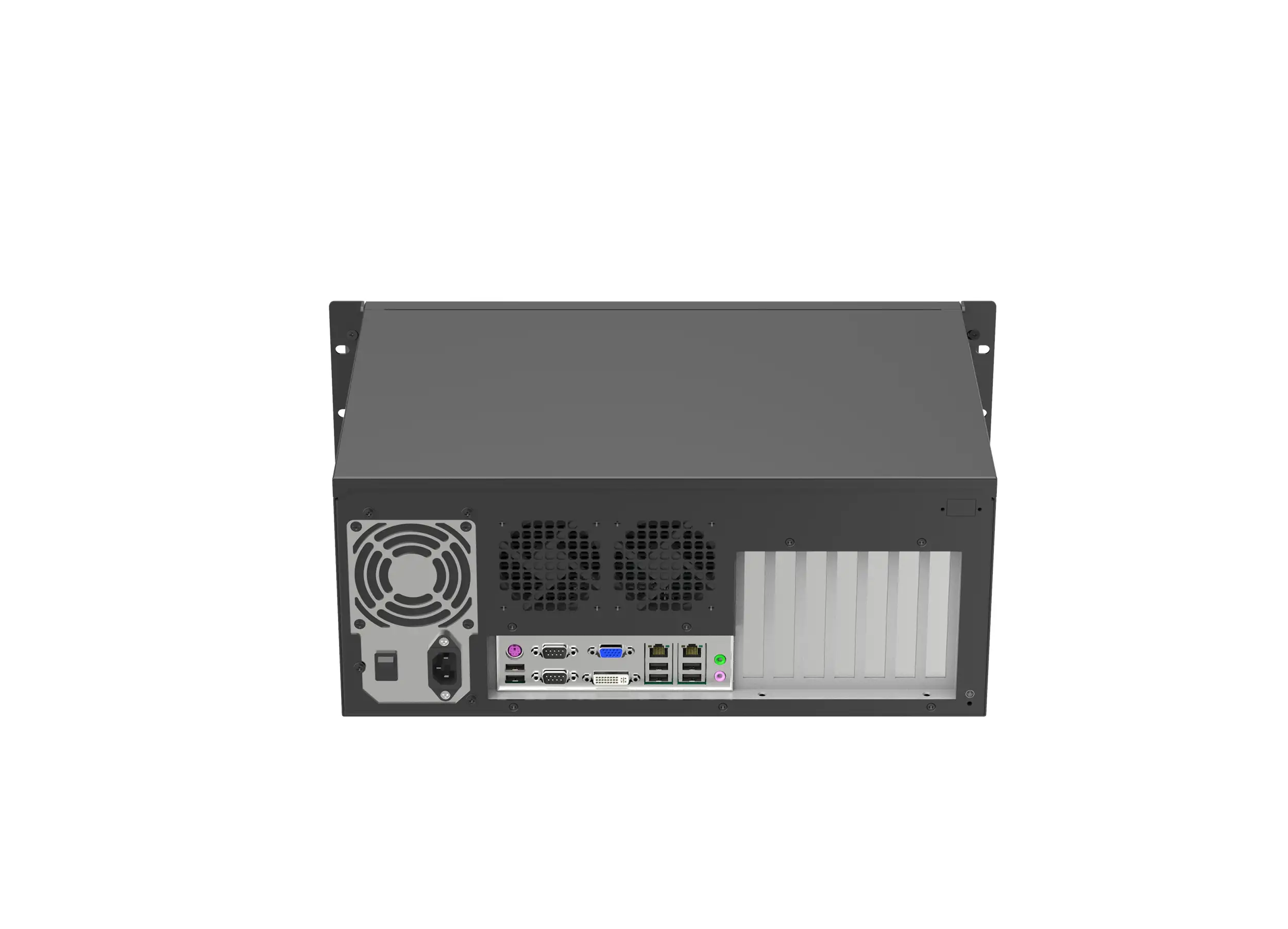

| I/0 Expansion | 7 expansion slots | |
| Power | Small 1U/FLEX power supply | |

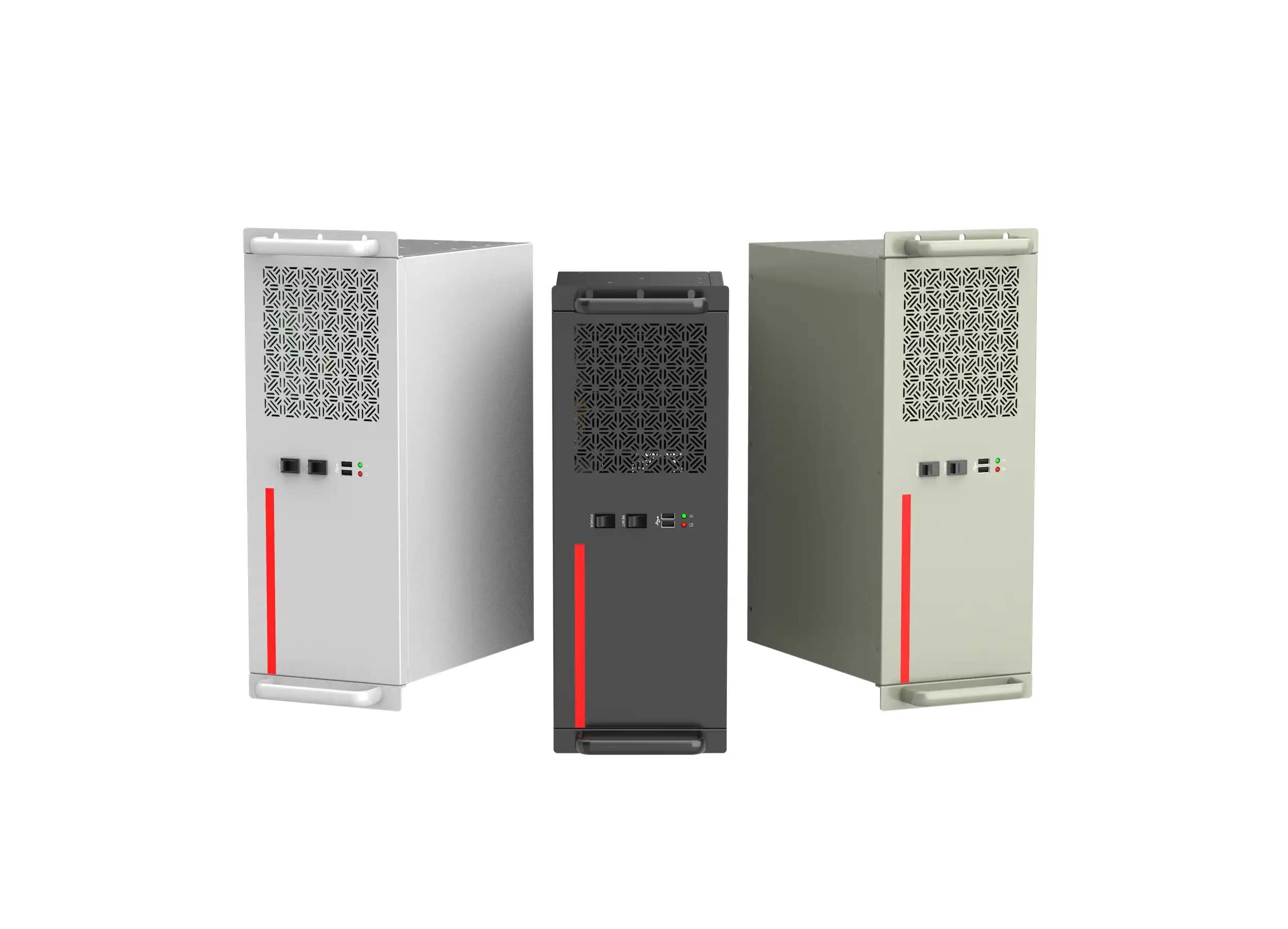

| Color | Black/ Grey/ Sliver | |
| Package Size | 465X425X292mm | |
| Optional Motherboard: (Welcome to contact us for more specification of Motherboard) | ||
| Model | Plate Type | Size |
| ATX-B75 | ATX | 305x244mm |
| ATX-B85 | ATX | 305x244mm |
| ATX-B150 | ATX | 305x244mm |
| ATX-Q370 | ATX | 305x244mm |
| MATX-B75 | MicroATX | 244x244mm |
| MATX-B85 | MicroATX | 244x244mm |
| MATX-B150 | MicroATX | 244x244mm |
* Motherboard supports Intel LGA11552/4th Gen Intel Core 13, 15, i7, and Pentium, Celeron CPU
* The motherboard has 4*USB3.0, 7*USB2.0, 6*standard COM, and 10*COM are reserved for the motherboard
* The motherboard supports VGA+DVI-D dual display output at the same time
* Motherboard has 4*DDR3 memory slots, supporting up to 32GB 1333/1600MHz
* One-click hardware restore system
| Model | ATX-B85 |
| Product type | Standard ATX industrial motherboard |
| Processor | Support Intel’LGA11552/3rd generation IntelCore i3.5,7, and Pentium.Celeron CPU |
| Chipset | Intel*B85 |
| Memory | The motherboard has 4 DDR3 memory slots, supporting up to 32GB 1333/1600MHz |
| Display controller | Integrated display |
| Display interface | Dual display output DV-D+VGA, supports independent graphics card |
| Storage | 1*mSATA slot , 4*SATA Slot |
| Audio | Support MIC-in, Line out |
| Network | 2*Intel l219/210 |
| USB | USB3.0*4,USB2.0*7 ( 2pcs 3-in-1 interfaces shared with PS/2 are led out from the edge of the board; 1 USB port is plugged vertically into the board) |
| LPT interface | 1 parallel port |
| Serial port | The default 6COM is RS232, among which COM3-COM4 supports 485 function,and the motherboard is reserved to support 10 COMRS232 |
| PS2 keyboard and mouse | PS2 and USB use 3-in-1 connector |
| Digital I/O | 8-bit digital I/O, providing power and ground, 5V level |
| Power supply | ATX power supply |
| Expansion bus | 1 PCle×16, 1 PCle×4, 1 PCle×1, 4 PCI expansion ports |
| Operating temperature requirements | -10~60℃ |
| Working humidity requirements | 5%~95% no condensation |
| Storage temperature requirements | -40-80℃ |
| Storage humidity requirements | 5%~95% no condensation |
| Watch Dog | 255 levels of programmable seconds/minutes, supports timeout interrupt or system reset |
| Operating system | WinXPWin7/Win10/WES7/Linux, 32-bit/64-bit |
| PCB color matching requirements | PCB is sprayed with green |
| PCB size (L×W×H) | 305mmx244mm |
