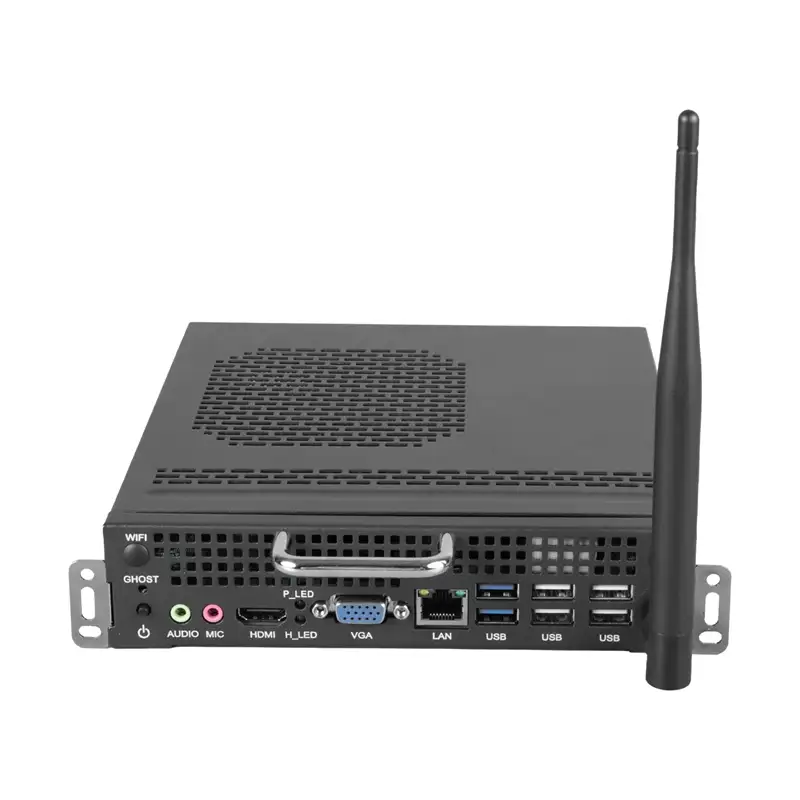

* Front VGA+HDMI display interface for easy use.
* Built-in Wifi add Wifi Signal output.
* 6 front USB ports, multi-application interface.
* Support Intel® 4th Generation® Core™ series CPU.
* One-key restore system.
Share This Items :
| Processor | CPU | I3-4130 (Dual-core Quad-Core) 3.4GHZ I5-4430 (quad-core quad-line) 3.0GHZ-3.2GHZ I7-4770 (quad-core and eight-line) 3.4GHZ-3.9GHZ |
| System Chipsets | B85 Bridge Film | |
| Memory | Technology RAM |
1x SODIMM DDR3 DDR3-2G;DDR3-4G;DDR3-8G; |
| Display | Front output | VGA-Max.1920 x 1080 @ 60HZ HDMI-Max.3840*2160 @ 30HZ |
| JAE | HDMI-Max.3840*2160 @ 30HZ | |
| Graphics | Model | Intel® Core Graphics 4600 |
| Maximum memory |
16G | |
| Hard disk | SSD | 64G/128G/256G/512G/1TB |
| Network | Port | PCIE |
| BT | Gigabit LAN controllers | |
| Wifi | 2.4g (optional 5G Bluetooth) | |
| I/O connector |
JAE Connector | JAE TX25 80-PIN |
| LAN | 1 (RJ45. Gigabit) | |
| USB | 2 x USB3.0 & 4 x USB2.0 | |
| VGA | VGA-Max.1920 x 1080 @ 60HZ | |
| Serial port | 1 x COM (RS-232. Optional) | |
| HDMI | HDMI-Max.3840*2160 @ 30HZ | |
| Extension ports |
Audio | 1*LINE OUT, 1* MIC IN |
| Mini-PCIe (built-in) | 1 x Mini-Pcle 1 x Msata |
|
| Power requirements | DC-IN | 12-19V |
| Physical | Size | L195 x W180 x H 30/42MM |
| Shell material | Iron | |
| Cooling | Cooling | Dual fan heat dissipation |
| Environment | Working temperature humidity |
0 – 40℃ 95% @40°C non-condensing |
| Software | Operating system | Windows®7/ Windows®10/LINUX |
| Package | Each OPS PC was packed by a box, 10 boxes in 1 carton | |
| Warranty | 3 years |
