* Front HDMI, VGA display interface, easy to use.
* Support Intel 2th to 14th Generation® Core CPU.N/J series.
* The motherboard has hardware one-key restore function, Network wake-up and scheduled startup function.
Share This Items :
| Memory | RAM | DDR3/DDR4 | |||||||
| Storage | SSD | 128G/256G/512G | |||||||
| Network Card | support | 2.4g/5G | |||||||
| Gigabit LAN Controller | |||||||||

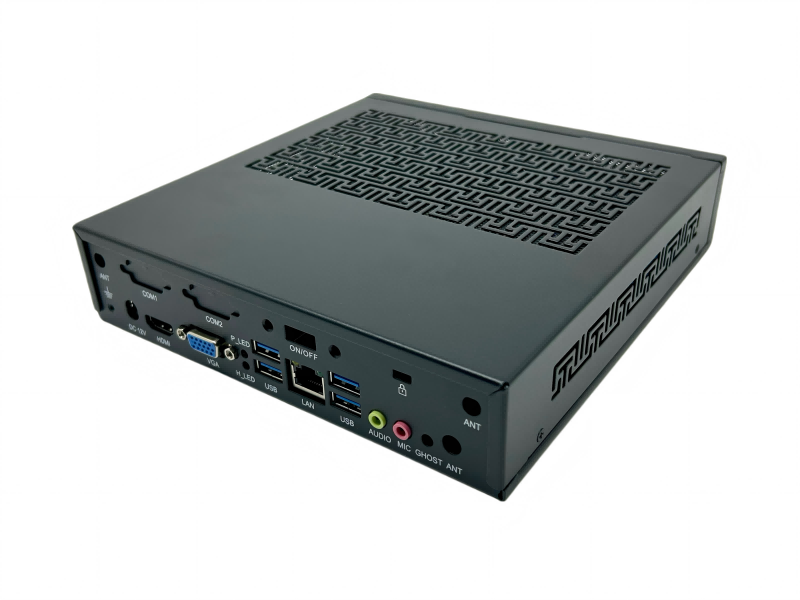

| I/O interface | DC | 1*3.5mm DC-IN | |||||||
| HDMI | 1* HDMI Female Type-A | ||||||||
| VGA | 1* Female VGA | ||||||||
| LAN | 1* RJ45 interface/100M/1000M adaptive（Support multi-port customization） | ||||||||
| USB | 4 x USB3.0, 4 x USB2.0 | ||||||||
| Audio | 2 x AUDIO OUT, 2 x MIC IN | ||||||||
| Serial Port | 1 x COM（Support multi-port customization） | ||||||||
| Physical properties | Size | 200 x 195 x 45.5mm | |||||||
| Shell material | Iron | ||||||||
| Heat dissipation | Cooling method | Iron shell open heat dissipation + 1 fan for cooling | |||||||
| Environment | Temperature | 0 – 55℃ | |||||||
| Relative humidity | 95% @40℃(Non-condensing) | ||||||||
| Software Development Kit | Operating system | Windows 7/ Windows10/ Windows11 | |||||||
| Automatically start the machine after power on | Support automatic startup upon power-on | ||||||||
| Packing information | N.W/ pcs | 1.65KG | |||||||
| G.W/ pcs | 1.8KG | ||||||||
| Packing size | 260*230*110mm | ||||||||
| Qty/Carton | 5 pcs | ||||||||
| G.W/carton | 9.7kg | ||||||||
| Carton size | 600*295*265mm | ||||||||
