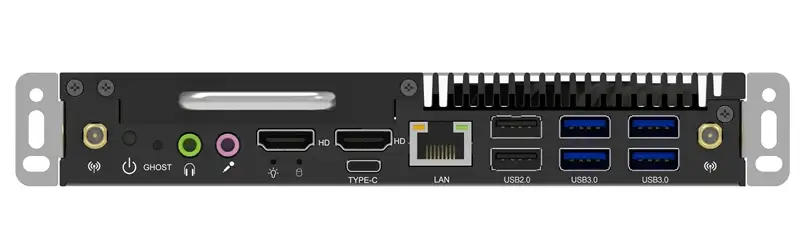

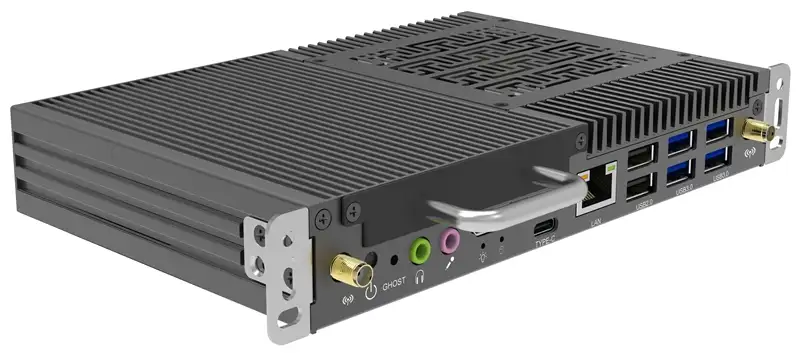

* Front dual HDMI 4K60Hz display interface, rear OPS terminal 4K60Hz output.
* Built-in antennas for enhanced WiFi signal output.
* 4 front USB 3.0 ports, 2 USB 2.0 ports, 1 Type-C 3.0 port.
* Supports Intel Core i3, i5, and i7 processors from the 12th to 13th generation (U15/P28/H45 series).
* One-key system restore button.
* IO fan speed control.
Share This Items :
| Processor | Supports onboard CPU models | i3 1210U 1.0GHz turbo frequency 4.4GHz 9W~29W 6 cores 8 threads i5 1230U 1.0GHz turbo frequency 4.4GHz 9W~29W 10 cores 12 threads i5 1235U 1.3GHz turbo frequency 4.4GHz 15W~55W 10 cores 12 threads i5 1240P 1.7GHz turbo frequency 4.4GHz 28W~64W 12 cores 16 threads i5 12450H 2.0GHz turbo frequency 4.4GHz 45W~95W 8 cores 12 threads i7 1255U 1.7GHz turbo frequency 4.7GHz 15W~55W 10 cores 12 threads i7 1260P 2.1Ghz turbo frequency 4.7GHz 28W~64W 12 cores 16 threads i7 1270P 2.2GHz turbo frequency 4.8GHz 28W~64W 12 cores 16 threads i3 1315U 1.2GHz turbo frequency 4.5GHz 15W-55W 6 cores 8 threads i5 1345U 1.4GHz turbo frequency 5.2GHz 15W~55W 10 cores 12 threads i7 1360P 2.2GHz turbo frequency 5.0GHz 28W~64W 12 cores 16 threads i7 1370P 2.8GHz turbo frequency 5.2GHz 28W~64W 14 cores 20 threads |
| Memory | Technology RAM |
2x SODIMM DDR4 Maximum support is 64GB |
| Display | Front output | 2*HDMI2.0 3840 x 2160 4K60Hz |
| JAE | 1*HDMI2.0 3840 x 2160 4K60Hz | |
| Graphics | Model | Intel lris Xe Graphics / Intel® UHD Graphics |
| Hard disk | SSD | 1x M.2 2280 slot supports PCIe/SATA protocol (auto-switching) 1x JSATA interface supports 2.5-inch hard disk. |
| BT | YES | |
| Network | WLAN | Support WIFI5/WIFI6, (optional 2.4G+5G dual-band) |
| I/O connector |

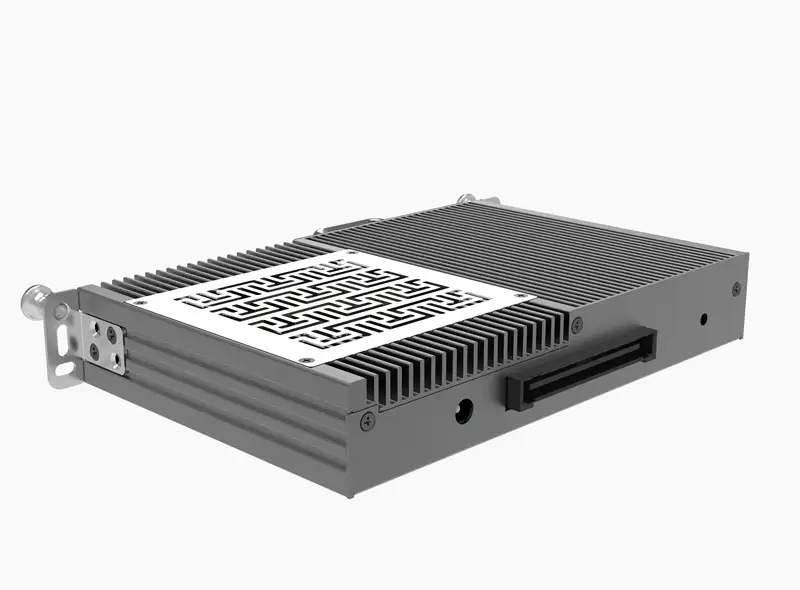

JAE Connector | JAE TX25 80-PIN |
| LAN | 1×10/100/1000Mbps adaptive (RJ45) | |
| USB | Front Panel : 4xUSB 3.0 2xUSB2.0 Rear Panel : 2xUSB2.0 1xUSB3.0 |
|
| Type-C | 1xUSB3.0 Transmission function | |
| Super IO | Support serial port function (default TTL), Intelligent fan speed control |
|
| Extension ports |
Audio | 1*LINE OUT,1 *MIC IN |
| Mini-PCIe (built-in) | 1 x M.2 2230(WIFI) 1 x M.2 2280(SSD) 1 x JSATA (2.5-inch hard disk) |
|
| Power requirements | DC-IN | Above 19V/5A |
| Physical | Size | L119*W180*H30mm |
| Shell material | Aluminum shell | |
| Cooling | Cooling | 5V single fan cooling |
| Environment | Working temperature humidity |
Working temperature: -15℃~50℃ Working humidity: 10%~90%, non-condensing |
| Software | Operating system | Windows®10/ Windows®11/LINUX |
| Package | 1 pcs/ box, 10 boxes /Carton | |
| Warranty | 3 years |
