* Supports Intel desktop 12-13th Gen U15/P28/H45 Core , i3/i5/ i7 Series CPU.

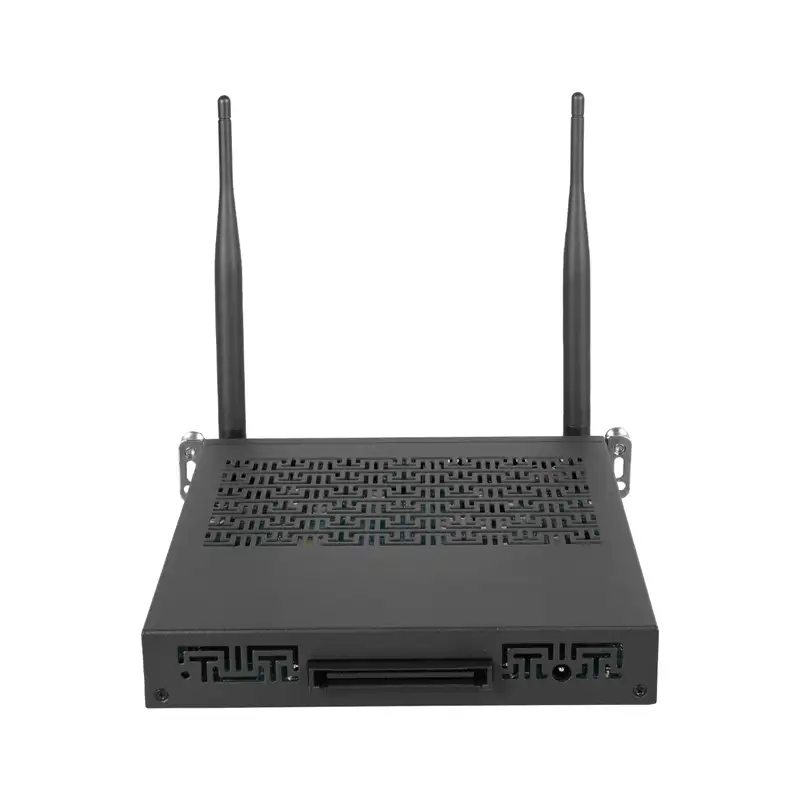

* Front DP 8K Display + HDMI4K Display Interface, Rear OPS Port 4K60Hz Output.
* Antenna onboard help to enhanced WIFI signal output.

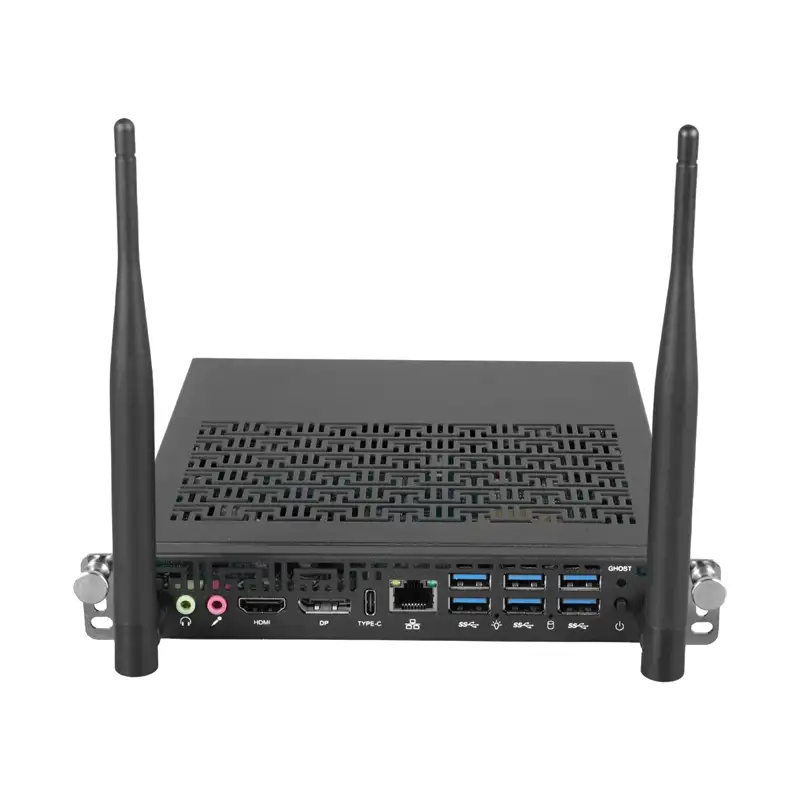

* Front 4* USB3.0, 2 *USB2.0, 1* Type-c 3.0 Ports.
*IO Fans Speed Control.
*Support One -key restore system function.
*Size : 195*180*30/42MM
Share This Items :
| Processor | CPU model number | I3 12100 3.3GHz Turbo frequency 4.3GHz 4 cores 8 threads 60W I5 12400 2.5GHz Turbo frequency 4.4GHz 6 cores 12 threads 65W I7 12700 2.1GHz Turbo 4.8GHz 12 cores 20 threads 65W I9 12900 1.8GHz Turbo frequency 5.1GHz 16 cores 24 threads 65W I5 13600K 2.6GHz Turbo frequency 5.1GHz 14 cores 20 threads 125W i3 13100 3.4GHz Turbo frequency 4.5GHz 4 cores 8 threads 60W 12MB i5 13400 2.5GHz Turbo frequency 4.6GHz 10 cores 16 threads 65W 20MB i7 13700 2.1GHz Turbo frequency 5.2GHz 16 cores 24 threads 65W 30MB |
| Memory | RAM | 1x SODIMM DDR4 DDR4-8GB;DDR4-16GB;DDR4-32GB; |
| Frequence | 3200MHz | |
| Display | Front output | DP 7680 x 4320 8K60Hz HDMI2.0 3840 x 2160 4K60Hz |
| JAE | HDMI2.0 3840 x 2160 4K60Hz | |
| Graphics | Model | Intel UHD Graphics 730 |
| Hard disk | SSD | M.2 2280 supports PCIe/SATA protoco |
| Network | Interface | M.2 2230 PCIe protocol |
| Bluetooh | YES | |
| WIFI | Support WIFI 5/WIFI 6, standard 24G (optional 2.4G+5G dual frequency) | |
| I/O connector |
JAE Connector | JAE TX25 80-PIN |
| LAN | 1×10/100/1000Mbps(RJ45) | |
| USB | Front Panel: USB3.0 x4, USB2.0 x2 Rear Panel : USB2.0 x2 ,USB3.0x1 |
|
| Type-C | 1 x USB3.0 | |
| Super IO | Support Serial Port function(TTL default) ,The mainboard support RS232 Intelligent fan speed control |
|
| Extension ports |
Audio | LINE OUT*1 MIC IN*1 |
| MINI-PCIe（built-in） | 1x M.2 2230(WIFI) 1x M.2 2280(SSD) 1X SATA |
|
| Power requirements | DC-IN | above 19V/6A |
| Physical | Size | L 195x W180x H30/42 mm |
| Shell material | Iron | |
| Cooling | Cooling | dual fan heat dissipation |
| Environment | Working temperature humidity |
Working temperature: -20℃~60℃ Working humidity: 10%~90%, non-condensing |
| Software | Operating system | Windows®10/ Windows®11/LINUX |
| Package | 1 pcs/ Box, 10 boxes/ Carton | |
| Warranty | 3 years |
