* Supports Intel laotop 12-14th Gen U15/P28/H45 Core , i3/i5/ i7 Series CPU.
* Front DP 8K Display + HDMI4K Display Interface, Rear OPS Port 4K60Hz Output.
* Antenna onboard help to enhanced WIFI signal.

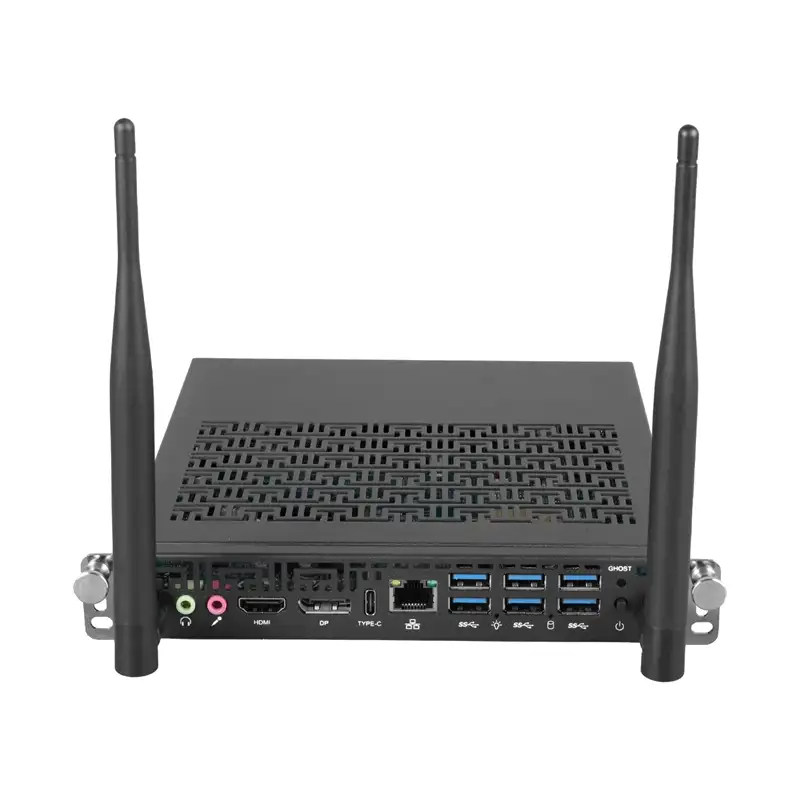

* Front 4* USB3.0, 2 *USB2.0, 1* Type-c 3.0 Ports.
*IO Fans Speed Control.
*Support One -key restore system function.
*Size : 195*180*30/42MM (Asian size )
Share This Items :
| Processor | CPU model number | i3 1210U 1.0GHz turbo frequency 4.4GHz 9W~29W 6 cores 8 threads i5 1230U 1.0GHz turbo frequency 4.4GHz 9W~29W 10 cores 12 threads i5 1235U 1.3GHz turbo frequency 4.4GHz 15W~55W 10 cores 12 threads i5 1240P 1.7GHz turbo frequency 4.4GHz 28W~64W 12 cores 16 threads i5 12450H 2.0GHz turbo frequency 4.4GHz 45W~95W 8 cores 12 threads i7 1255U 1.7GHz turbo frequency 4.7GHz 15W~55W 10 cores 12 threads i7 1260P 2.1Ghz turbo frequency 4.7GHz 28W~64W 12 cores 16 threads i7 1270P 2.2GHz turbo frequency 4.8GHz 28W~64W 12 cores 16 threads i3 1315U 1.2GHz turbo frequency 4.5GHz 15W-55W 6 cores 8 threads i5 1345U 1.4GHz turbo frequency 5.2GHz 15W~55W 10 cores 12 threads i7 1360P 2.2GHz turbo frequency 5.0GHz 28W~64W 12 cores 16 threads i7 1370P 2.8GHz turbo frequency 5.2GHz 28W~64W 14 cores 20 threads |
| Memory | RAM | 2x SODIMM DDR4 DDR4-8GB;DDR4-16GB;DDR4-32GB;DDR4-64GB; |
| Storage | SSD | 128G/256G/512G/1TB |
| Display | Front output | DP 7680 x 4320 8K60Hz HDMI2.0 3840 x 2160 4K60Hz |
| JAE | HDMI2.0 3840 x 2160 4K60HZ | |
| Graphics | Model | Intel lris Xe Graphics / Intel® UHD Graphics |
| Hard disk | SSD | M.2 2280 supports NVME/SATA protocol (automatic switching) 1x 7pin SATA (supports 2.5-inch SSD) |
| Network | Interface | 1x M.2 2230 PCle/USB port |
| BT | YES | |
| WIFI | Support WIFI5/WIF16, standard 24G (optional 2.4G+5G dual frequency) | |
| I/O connector |

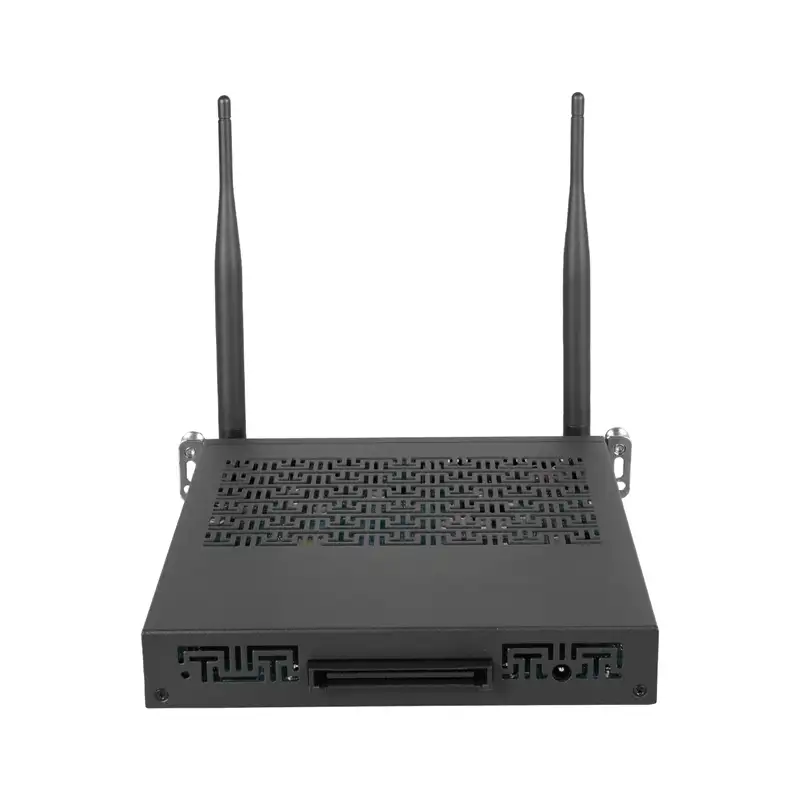

JAE Connector | JAE TX25 80-PIN |
| Indicator | 1 x Power indicator + 1x HDD indicator | |
| LAN | 1×10/100/1000Mbps(RJ45) | |
| USB | Front Panel : USB3.0 x4,USB2.0 x2 Rear Panel : USB2.0 x2 ,USB3.0x1 |
|
| Type-C | 1 x USB3.0 | |
| Super IO | Support serial port function (default TTL), The mainboard support RS232 Intelligent fan speed control |
|
| Antennas | 2 x Antennas | |
| Extension ports |
Audio | 1*LINE OUT, 1 *MIC IN |
| MINI-PCIe（built-in） | 1x M.2 2230(WIFI) 1x M.2 2280(SSD) 1X SATA |
|
| Power requirements | DC-IN | Above 19V/7A |
| Physical | Size | L 195x W180x H30/42mm |
| Shell material | Iron | |
| Cooling | Cooling | dual fans heat dissipation |
| Environment | Working temperature humidity |
Working temperature: -20℃~60℃ Working humidity: 10%~90%, non-condensing Storage temperature: -20℃~70℃ |
| Software | Operating system | Windows®10 /Windows®11/LINUX |
| Package | 1 pcs/ Box, 10 boxes/ Carton | |
| Warranty | 3 years |
