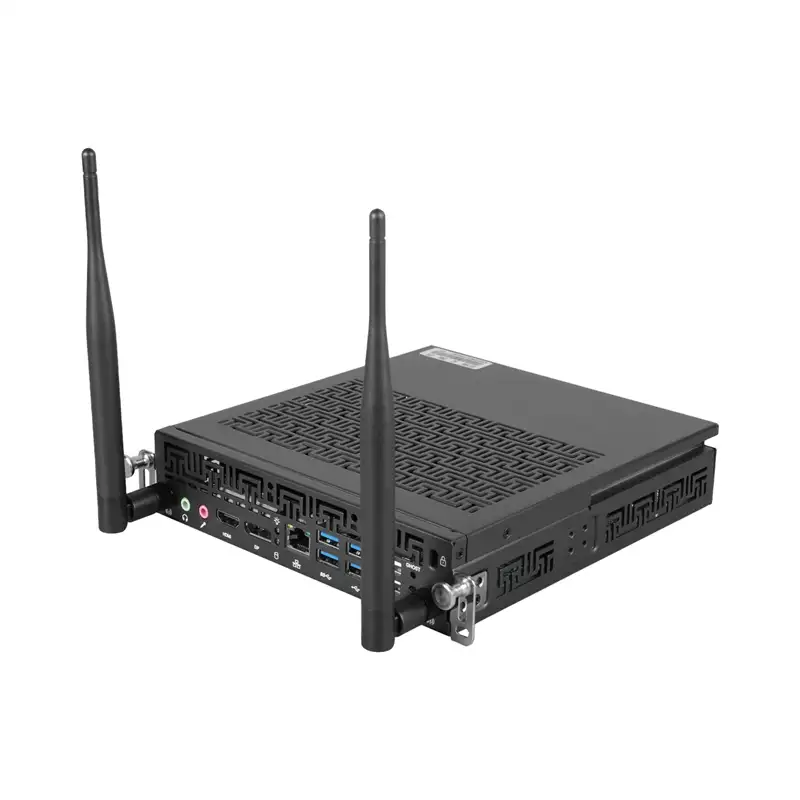

* Front DP+HDMI 4K display interface, rear HDMI supports 4K60HZ.
* The onboard antenna increases WIFI signal output.
* Front 6 USB interfaces, multiple application interfaces.
* Support-Intel 6th to 9th generation Core™ series CPU.
Share This Items :
| Processor | CPU model number | i5-6400 Main frequency 2.7GHz Max RWD 3.3GHz,4 Core 4 Thread,14nm 65W i5-6500 Main frequency 3.2GHz Max RWD 3.6GHz,4 Core 4 Thread,14nm 65W i7-6700 Main frequency 3.4GHz Max RWD 4.0GHz,4 Core 8 Thread,14nm 65W i5-7400 Main frequency 3.0GHz Max RWD 3.5GHz,4-Core 4-Thread,14nm 65W i5-7500 Main frequency 3.4GHz Max RWD 3.8GHz,4-Core 4-Thread,14nm 65W i7-7700 Main frequency 3.6GHz Max RWD 4.2GHz,4-Core 8-Thread,14nm 65W i3 8300 Main frequency 3.7GHz 4 Core 4 Thread 14nm 62W i5 8400 Main frequency 2.8GHz Max RWD 4GHz,6 cores 6 threads 14nm 65W i7 8700 Main frequency 3.2GHz Max RWD 4.6GHz,6 cores 12 threads 14nm 65W i3 9100 Main frequency 3.6GHz Max RWD 4.2GHz,4-Core 4-Thread,14nm 65W i5-9400 Main frequency 2.9GHz Max RWD 4.1GHz,6 cores 6 threads,14nm 65W i7-9700 Main frequency 3.0GHz Max RWD 4.7GHz,8 Cores 8 Threads,14nm 65W |
| System Chipsets | intel® H110 Express | |
| Memory | Technology RAM |
1x SODIMM DDR4 DDR4-4GB;DDR4-8GB;DDR4-16GB;DDR4-32GB |
| Display | Front output | DP 3840 x 2160 4K60Hz HDMI 1.4 3840 x 2160 4K30Hz |
| JAE | HDMI 2.0 3840 x 2160 4K60Hz | |
| Graphics | Model | CPU integrated graphics card |
| Hard disk | SSD | mSATA Solid State Drive Interface |
| Network | Port | M.2 PCIe 2230 |
| BT | Yes | |
| Wifi | Support standard 2.4G (optional 2.4G+5G dual frequency) | |
| I/O connector |

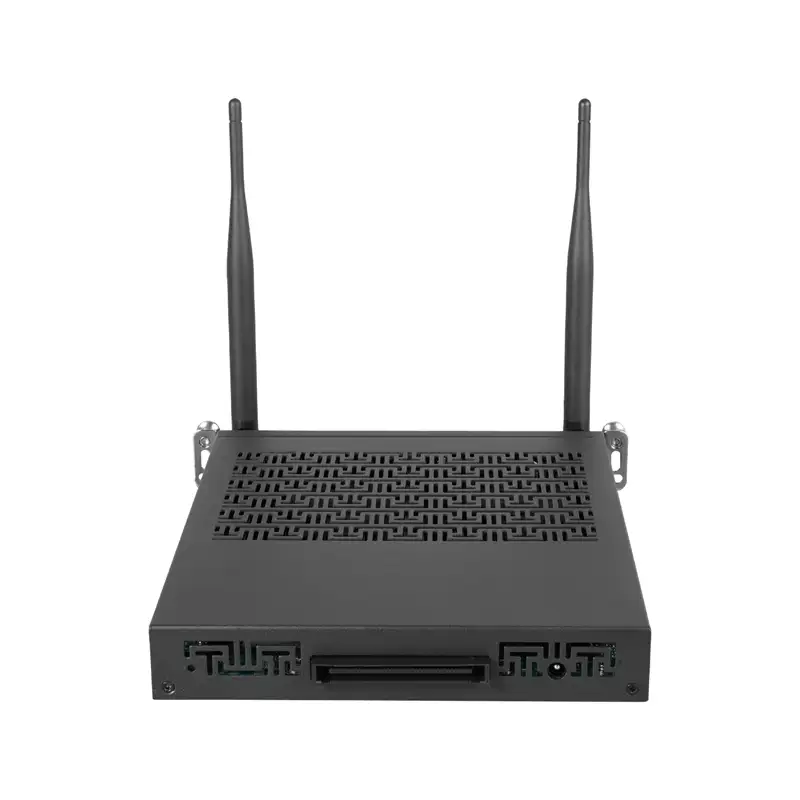

JAE Connector | JAE TX25 80-PIN |
| LAN | 1×10/100/1000Mbps adaptive (RJ45) | |
| USB | Front Panel : 3 x USB3.0 & 3 x USB2.0 Rear Panel: 2x USB2.0 & 1xUSB3.0 |
|
| Super IO | Realize serial port function (default TTL)with RS232 support reserved on the motherboard Fan Speed Control automatically |
|
| Extension ports |
Audio | 1*LINE OUT , 1* MIC IN |
| Mini-PCIe (built-in) | 1 x M.2 2230 1 x mSATA (mini-SATA) 1 x PCIe*16 |
|
| Power requirements | DC-IN | 19V/5A |
| Physical | Size | L195*W180*H30/42MM |
| Shell material | Iron | |
| Cooling | Cooling | 12V dual fan heat dissipation |
| Environment | Working temperature humidity |
-20℃~60℃ 10%~90% non-condensing |
| Software | Operating system | Windows®7/ Windows®10/LINUX |
| Package | 1 pcs /Box, 10 boxes/ Carton | |
| Warranty | 3 years |
