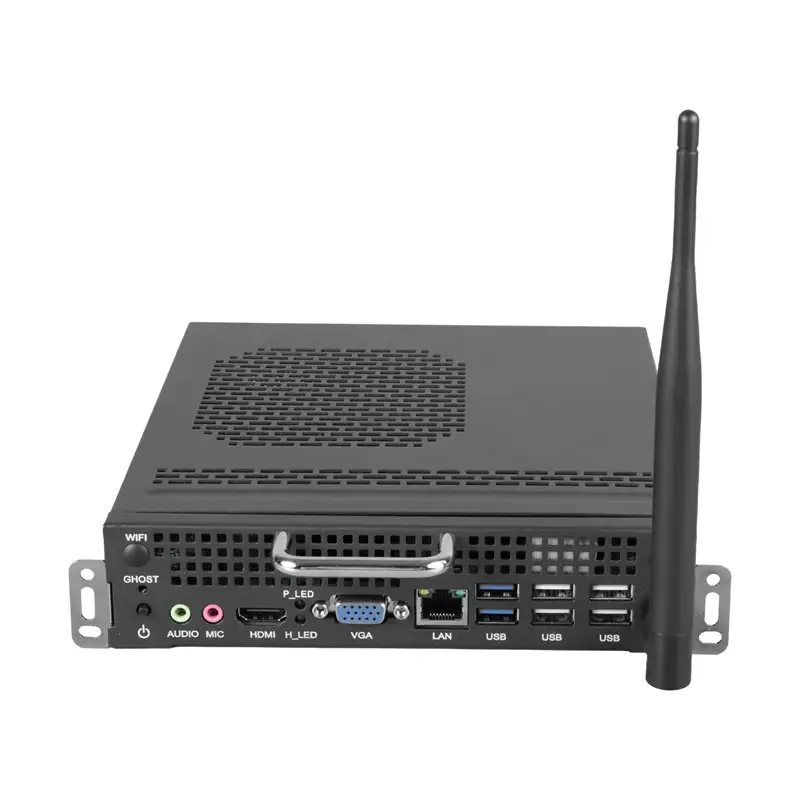

* Front VGA+HDMI display interface for easy use.

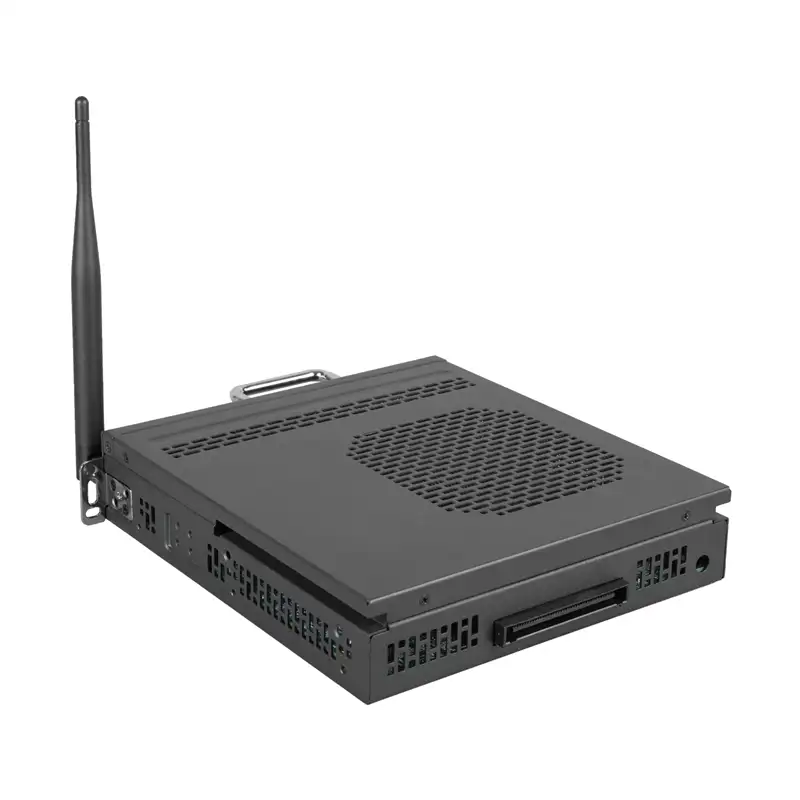

* The onboard antenna increases the WIFI signal output.
* Front USB 3.0*4,USB2.0*2, USB Type-c 3.0*1.
* Support for 4th generation laptop CPU.
* One-key restore system.
Share This Items :
| Processor | CPU model number | I3-4000M (Dual Core Quad) at 2.4GHZ I5-4200M (Dual Core Quad) 2.5GHZ-3.1GHZ I7-4600M (Dual Core Quad) 2.9GHZ-3.2GHZ |
| Memory | Technology RAM |
1x SODIMM DDR3 DDR3-2G;DDR3-4G;DDR3-8G; |
| Display | front output | VGA-Max. 1920 x 1080 @ 60HZ HDMI-Max. 1920 x 1080 4K@ 30HZ |
| JAE | HDMI-Max.3840 x 2160 4K@ 3HZ | |
| Graphics | Model | Intel® Core Graphics 4600 |
| Hard disk | SSD | 64G/128G/256G/512G |
| Network | Port | PCIE |
| Support | 100 Gigabit LAN Controller | |
| 2.4g (optional 5G Bluetooth) | ||
| I/O connector |
JAE Connector | JAE TX25 80-PIN |
| LAN | 1 (RJ45. 100 megabit) | |
| USB | 2 x USB3.0 & 4 x USB2.0 | |
| HDMI | HDMI-Max.1920 x 1080 @30HZ | |
| VGA | VGA-Max.1920 x 1080 @ 60HZ | |
| Super IO | 1 x RS232 COM and tailpiece serial TTL level output (either one) | |
| Extension ports |
Audio | 1*LINE-OUT, 1* MIC IN |
| Mini-PCIe (built-in) | 1 x Mini-Pcie 1 x Msata |
|
| Power requirements | DC-IN | 12~19V |
| Physical | Size | L195 x W180 x H 30/42MM |
| Shell material | Iron | |
| Cooling | Cooling | Dual fan heat dissipation |
| Environment | Working temperature humidity |
0 – 55℃ 95% @40℃(Non-condensing) |
| Software | Operating system | Windows®7/ Windows®10//LINUX |
| Package | 1 pcs / Box. 10 boxes/Carton | |
| Warranty | 3 years |
